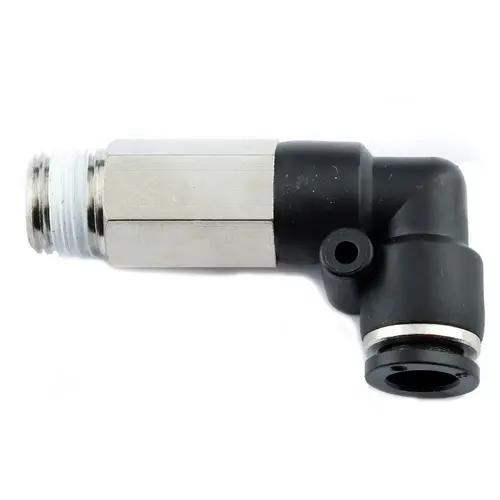

4mm Tube x M5 Ext. Swivel Elbow

SKU: YPLL04-M5

$3.63
Inc GST In Stock
Free Shipping Australia Wide*

Thread Size
O.D Tube Size


Calculate Shipping


Nickle Plated Brass / UV Black Plastic, nitrile O-ring Push Fit.4mm Tube x M5 BSPT Extended Male Swivel Elbow.0-8 BAR pressure range, 60°C temperature.

Tapered Male BSP thread on an extended swivel elbow.

Material Nickel Plated Brass / UV Black Plastic, Nitrile O-ring
Pressure Range 0 to 8 BAR
Max Temperature 60°C
Features Pre-taped Teflon Gum, Allen key drive through centre

(YPLL)

Extended Male Swivel Elbow Push Fit Fitting

Model O.D Tube (øD) Thread (R) BSPT E B øP A H F ød
YPLL04-M5 4 M5 16.8 32.3 10.5 4 10 - -
YPLL04-01 4 1/8” 16.8 35.3 10.5 7 10 - -
YPLL04-02 4 1/4” 16.8 37.8 10.5 9.5 14 - -
YPLL06-M5 6 M5 19 35 13 4 12 8 3.2
YPLL06-01 6 1/8” 19 38 13 7 12 8 3.2
YPLL06-02 6 1/4” 19 41 13 9.5 14 8 3.2
YPLL06-03 6 3/8” 19 43 13 10.5 17 8 3.2
YPLL06-04 6 1/2" 19 47 13 13 21 8 3.2
YPLL08-01 8 1/8” 23 43 14.4 7 14 9 3.2
YPLL08-02 8 1/4” 23 46 14.4 9.5 14 9 3.2
YPLL08-03 8 3/8” 23 47 14.4 10.5 17 9 3.2
YPLL08-04 8 1/2" 23 52 14.4 13 21 9 3.2
YPLL10-01 10 1/8” 27.5 49.5 18.4 7 17 12 4.2
YPLL10-02 10 1/4” 27.5 52 18.4 9.5 17 12 4.2
YPLL10-03 10 3/8” 27.5 54 18.4 10.5 17 12 4.2
YPLL10-04 10 1/2" 27.5 58 18.4 13 21 12 4.2
YPLL12-02 12 1/4” 30 58 20 9.5 19 13.2 4.2
YPLL12-03 12 3/8” 30 59 20 10.5 19 13.2 4.2
YPLL12-04 12 1/2" 30 63 20 13 21 13.2 4.2

All dimensions in mm unless shown otherwise.

Tube Size 4mm to 12mm
Thread Size M5 to 1/2"
Function Male Extension Swivel Elbow Push Fit
