SKU: CT-100

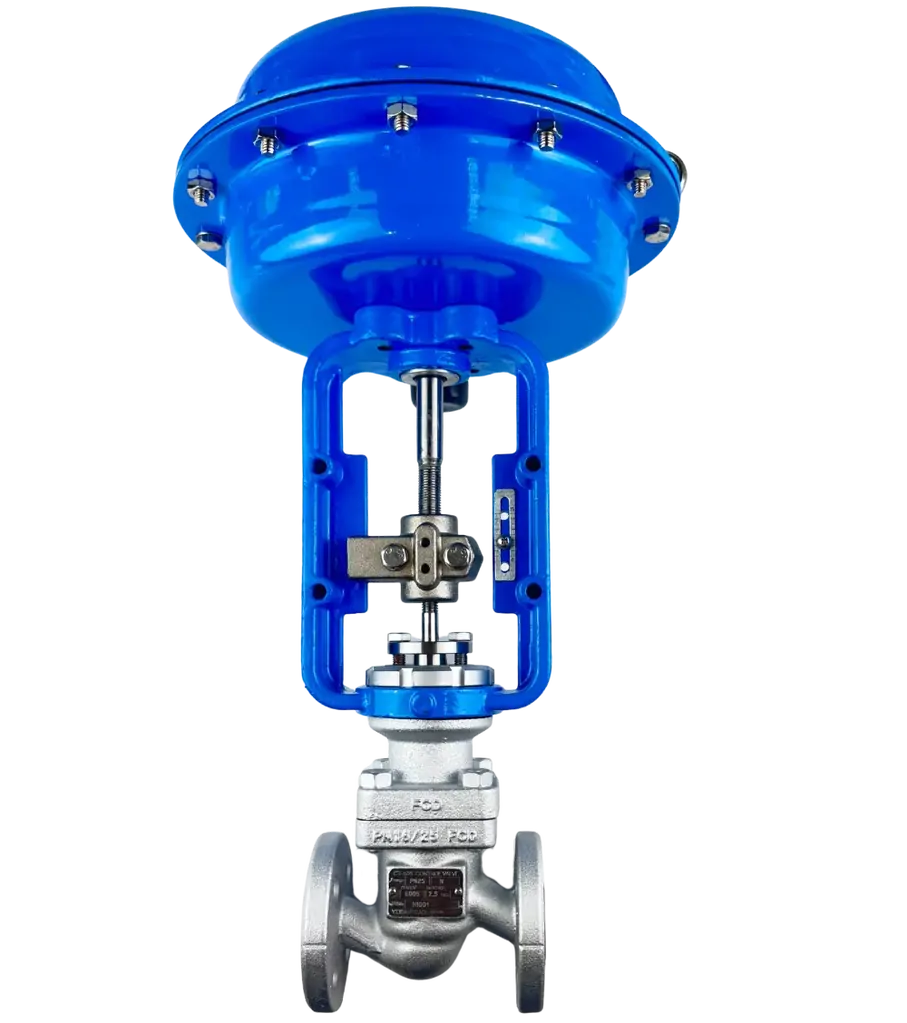

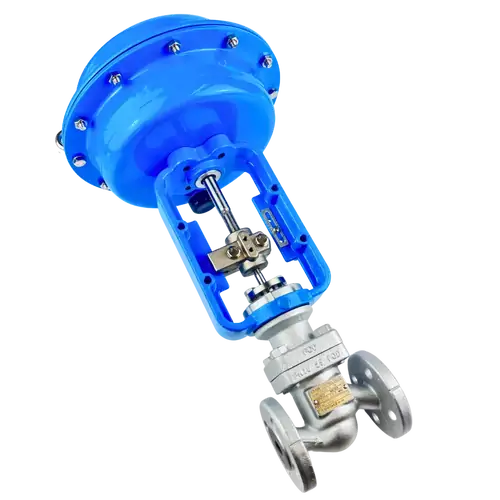

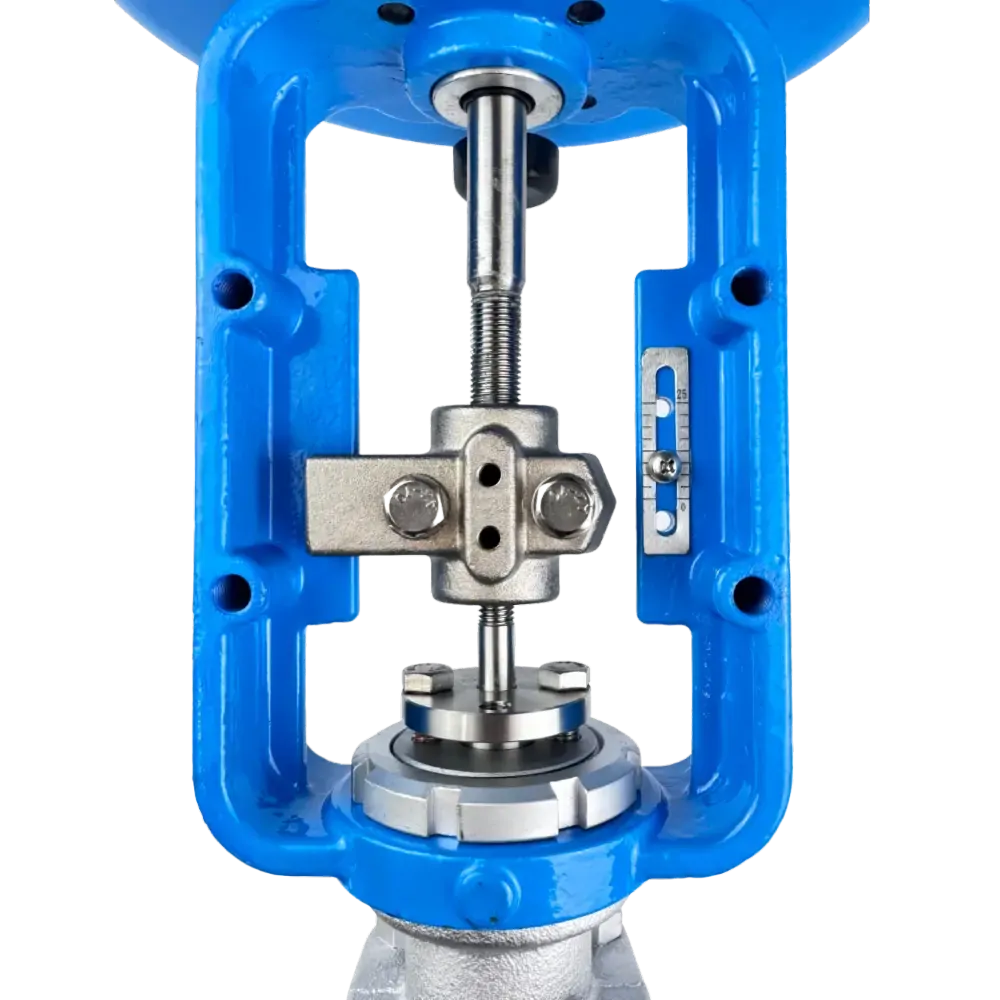

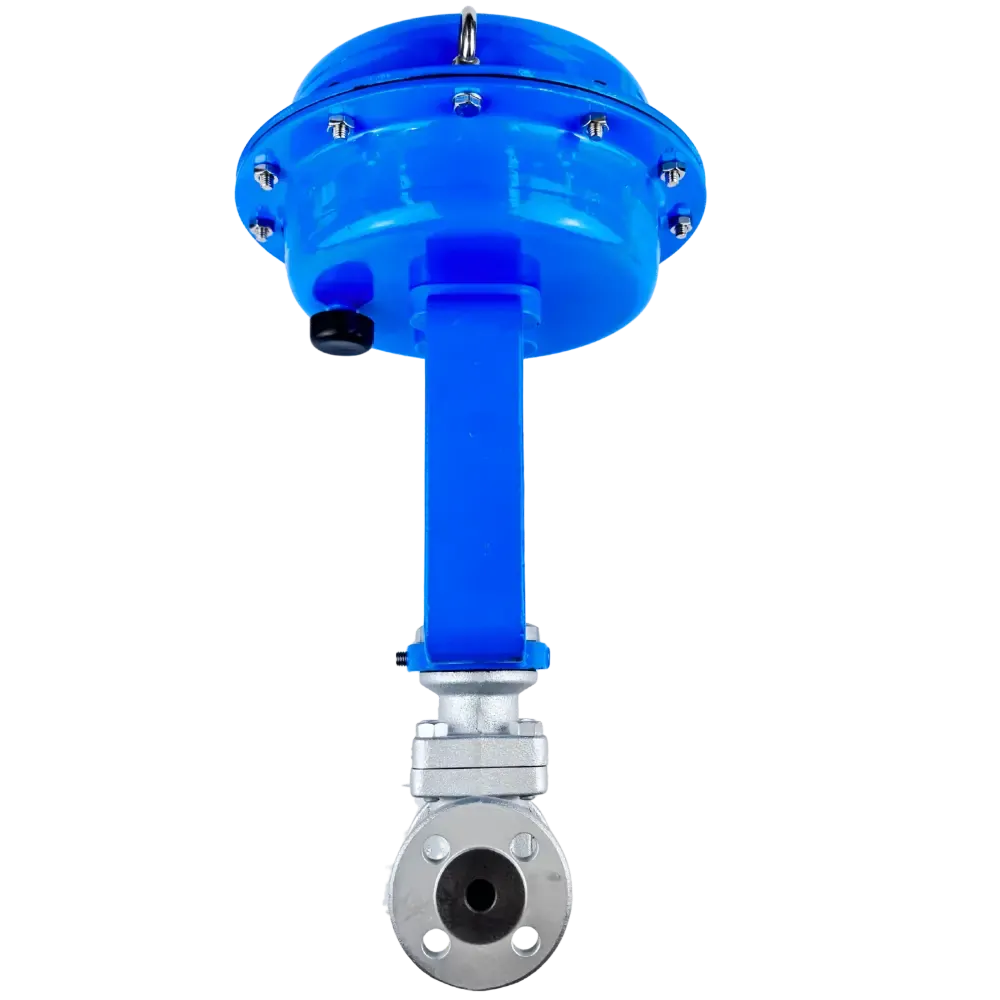

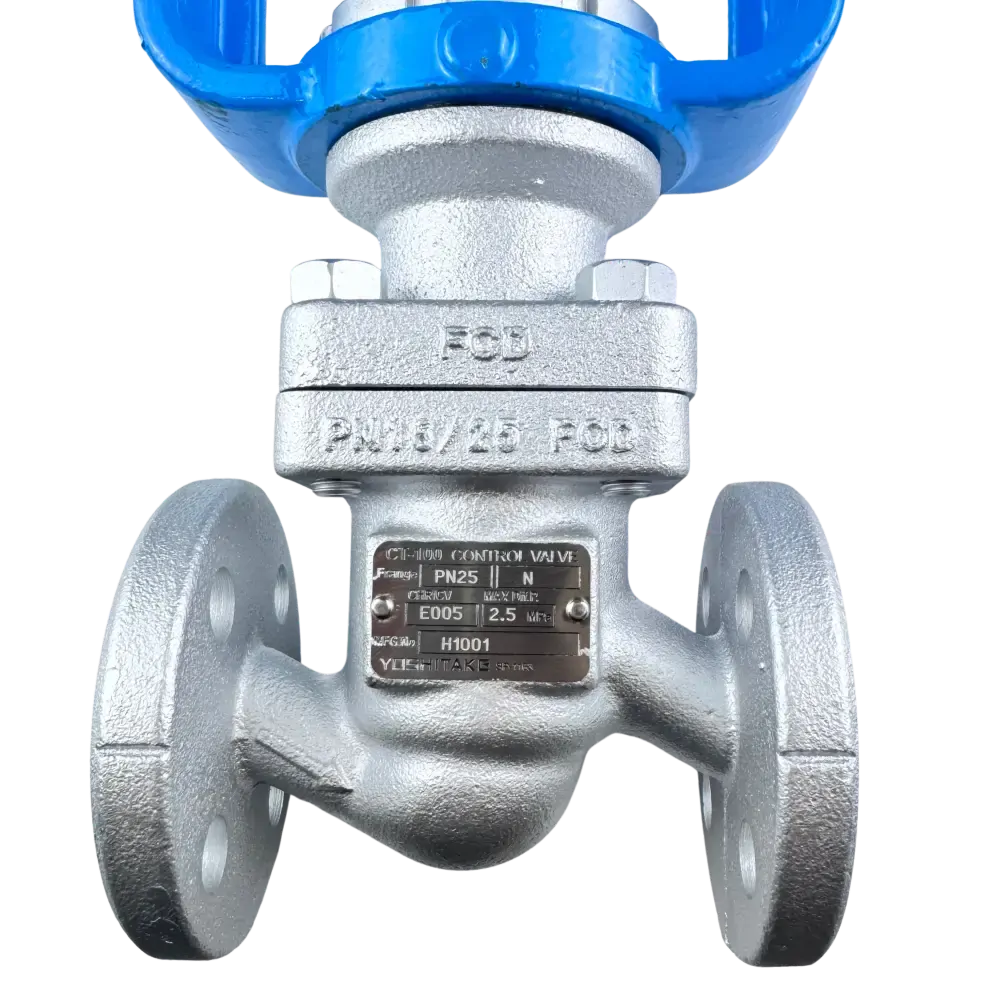

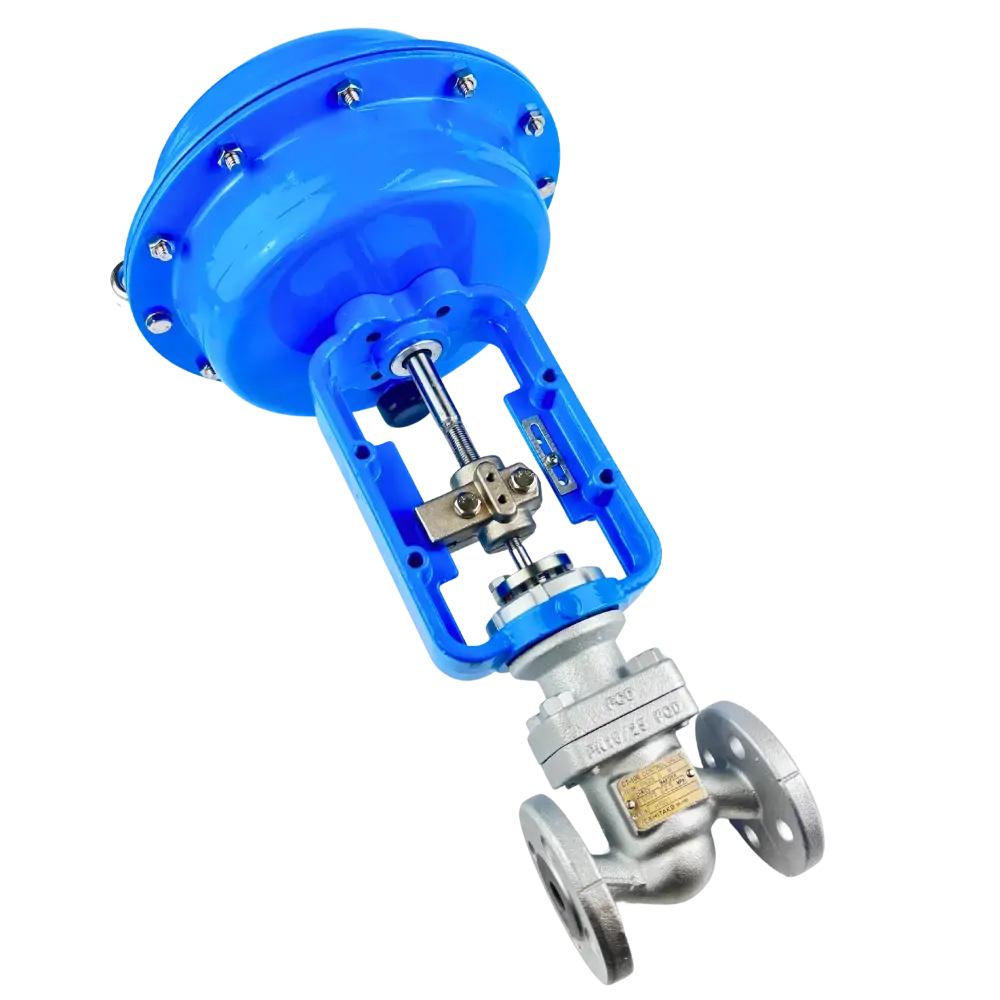

Ductile Iron Flanged DIN PN25 Control Valve Reverse Acting 25 Bar 250°C

From $3,084.40

Inc GST
In Stock
Make an Enquiry

High performance ductile iron control valve with flanged DIN PN25 connections, designed for reliable flow regulation in demanding industrial applications. Reverse acting configuration ensures fail-safe operation, with the valve closing on loss of air supply. Suitable for pressures up to 25 bar and temperatures up to 250°C. Robust construction provides excellent durability and long service life. Ideal for use in steam, water treatment, HVAC, chemical processing and general industrial systems. Flange dimensions to DIN standards for easy installation and compatibility with existing pipework.

This valve is also available as a fully assembled package with a linear positioner (4–20mA), including an airline filter regulator and required fittings.



PRESSURE-TEMPERATUR RATING
Flange -5 to 120°C 150°C 200°C 250°C
PN16 16 bar 15.5 bar 14.7 bar 13.9 bar
PN25 25 bar 24.3 bar 23 bar 21.8 bar



Cv Values
Pressure Rating Max. Differential Pressure DN15 DN20 DN25 DN32 DN40 DN50
PN16 10 Bar 4.6 8.6 13.3 18.5 28.9 41.6
16 Bar 24.8 36.2
PN25 10 Bar 28.9 41.6
16 Bar 24.8 36.2
25 Bar

Dimensional drawing

Model Size DN L H A Weight
CT-100-RA-015 1/2" 15 130 464 290 19
CT-100-RA-020 3/4" 20 150 464 290 20
CT-100-RA-025 1" 25 160 464 290 21
CT-100-RA-032 1-1/4" 32 180 465 290 23
CT-100-RA-040 1-1/2" 40 200 468 290 25
CT-100-RA-050 2" 50 230 576 360 38

All dimensions are in mm and wieghts in Kg unless otherwise stated

Sizes 15A (1/2") - 50A (2")
Valve Body Ductile Cast Iron
Gasket Graphite + Stainless Steel
End Connections EN PN16 and PN25
Pressure 10 bar, 16 bar or 25 bar
Temperature -5°C to 250°C
Aplication Steam, air, water, oil and other non-dangerous fluids

DATA SHEET

Others Also Bought

CT-100

Ductile Iron Flanged DIN PN25 Control Valve Reverse Acting 25 Bar 250°C

Features:

Sizes 15A (1/2") - 50A (2")
Valve Body Ductile Cast Iron
Gasket Graphite + Stainless Steel
End Connections EN PN16 and PN25
Pressure 10 bar, 16 bar or 25 bar
Temperature -5°C to 250°C
Aplication Steam, air, water, oil and other non-dangerous fluids

Description:

High performance ductile iron control valve with flanged DIN PN25 connections, designed for reliable flow regulation in demanding industrial applications. Reverse acting configuration ensures fail-safe operation, with the valve closing on loss of air supply. Suitable for pressures up to 25 bar and temperatures up to 250°C. Robust construction provides excellent durability and long service life. Ideal for use in steam, water treatment, HVAC, chemical processing and general industrial systems. Flange dimensions to DIN standards for easy installation and compatibility with existing pipework.

This valve is also available as a fully assembled package with a linear positioner (4–20mA), including an airline filter regulator and required fittings.



PRESSURE-TEMPERATUR RATING
Flange -5 to 120°C 150°C 200°C 250°C
PN16 16 bar 15.5 bar 14.7 bar 13.9 bar
PN25 25 bar 24.3 bar 23 bar 21.8 bar



Cv Values
Pressure Rating Max. Differential Pressure DN15 DN20 DN25 DN32 DN40 DN50
PN16 10 Bar 4.6 8.6 13.3 18.5 28.9 41.6
16 Bar 24.8 36.2
PN25 10 Bar 28.9 41.6
16 Bar 24.8 36.2
25 Bar
.

Ductile Iron Flanged DIN PN25 Control Valve Reverse Acting 25 Bar 250°C

CT-100

Dimensions:

Dimensional drawing

Model Size DN L H A Weight
CT-100-RA-015 1/2" 15 130 464 290 19
CT-100-RA-020 3/4" 20 150 464 290 20
CT-100-RA-025 1" 25 160 464 290 21
CT-100-RA-032 1-1/4" 32 180 465 290 23
CT-100-RA-040 1-1/2" 40 200 468 290 25
CT-100-RA-050 2" 50 230 576 360 38

All dimensions are in mm and wieghts in Kg unless otherwise stated

WARNING

These products are intended for use in industrial applications only. Do not use these products where pressures and temperatures can exceed those listed under ‘Technical Data’ and in our individual ‘Series’ data sheets. Before using these products with fluids other than these specified, for non-industrial applications, life-support systems, or other applications not within published specifications, consult Process Systems Pty Ltd. Through misuse, age, or malfunction, components used in industrial valve applications can fail in various modes. The system designer is warned to consider the failure modes of all component parts used in industrial valve applications and to provide adequate safeguards to prevent personal injury or damage to equipment in the event of such failure. System designers must provide a warning to the user in the system instructional manual if protection against a failure mode cannot be adequately provided. System designers and end users are cautioned to review specific warnings or specifications found in instruction sheets or labels packed or attached and shipped with the products. Our policy is one of continuous research and development. We therefore reserve the right to amend without notice the specifications given in this document or our individual ‘Series’ data sheets.

WARRANTY INFORMATION

All valve series and other products manufactured or distributed by Process Systems Pty. Ltd. are warranted by Process Systems to be free of defects in material and workmanship for a period of 1 year from the date of purchase or as the manufacturer warrants. Process Systems obligation under this warranty is limited to repair or replacement of the defec1ive product or refund of the purchase price paid solely at the discretion of Process Systems and provided such defective product is returned to Process Systems freight prepaid and upon examination by Process Systems such product is found defective. This warranty shall be void in the event that the product has been subject to misuse, misapplication, improper maintenance, modification or tampering. This warranty is expressed in lieu of all other warranties, expressed or implied from Process Systems Pty. Ltd. representatives or employees. Process Systems reserves the right to change Valve and Brochure specifications without notice.

.
