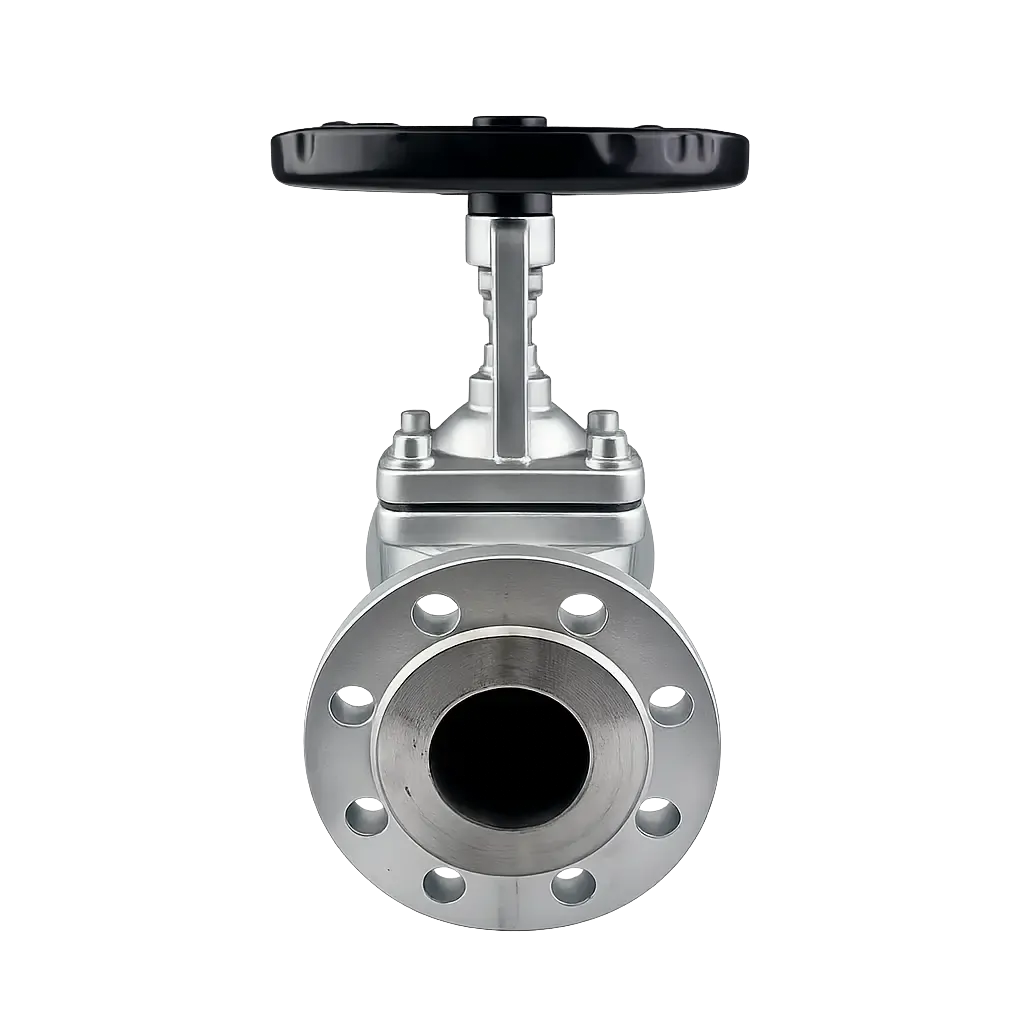

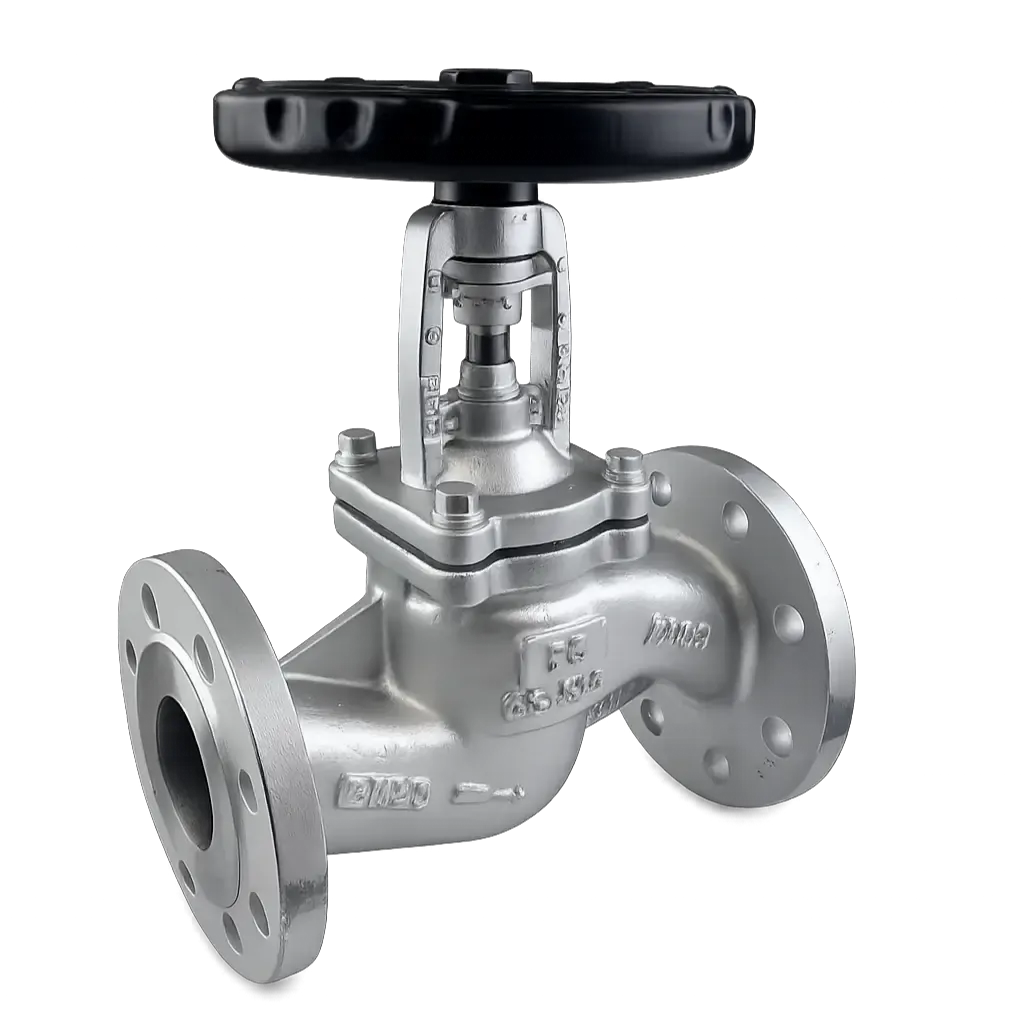

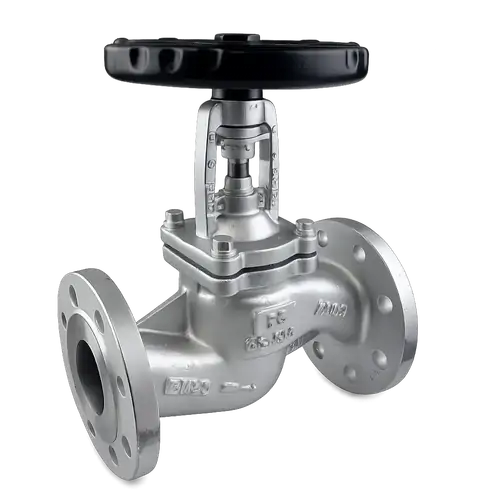

Features:
Size 15mm to 200mm
Flanges PN16, PN25 and PN40
Body Cast Steel

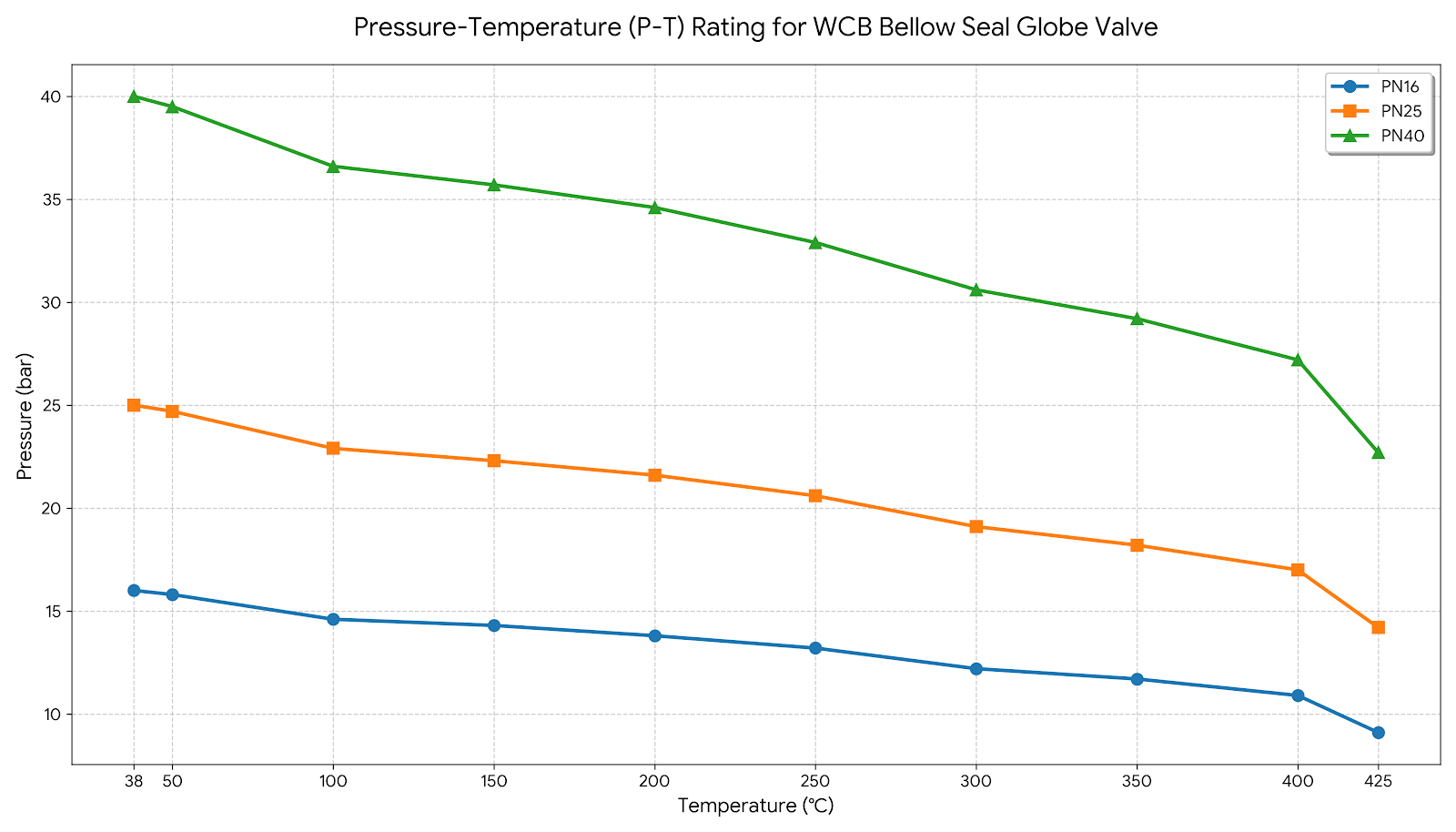

Nominal Pressure 16, 25 or 40 Bar
Max Temp 425°C
| Application | Steam| Air| Water| Oil| Other compatible fluids |
|---|---|
| Max temperture | 425°C |
| Connection | Flanged DIN PN16, PN25 or PN40 |
| Body | Cast Steel |
| Bonnet | WCB |
| Valve | Cast Steel |
| Bellows | Stainless Steel (304) |

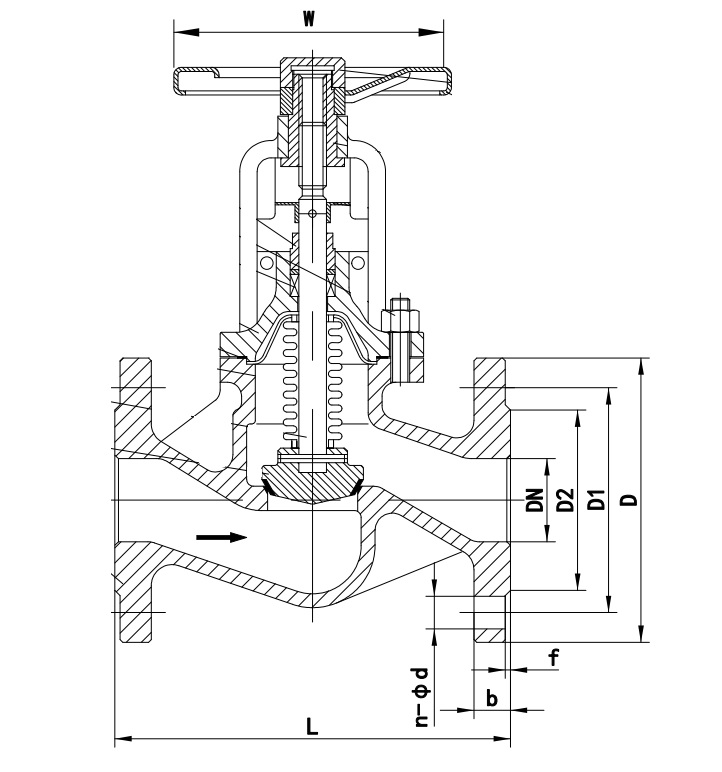

| N | D | D1 | D2 | b | n - ⌀d | L | f | W | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PN16 | PN25 | PN40 | PN16 | PN25 | PN40 | PN16 | PN25 | PN40 | PN16 | PN25 | PN40 | PN16 | PN25 | PN40 | ||||
| 15 | 95 | 65 | 45 | 16 | 4 x ⌀14 | 130 | 2 | 140 | ||||||||||
| 20 | 105 | 75 | 58 | 18 | 4 x ⌀14 | 150 | 2 | 140 | ||||||||||
| 25 | 115 | 85 | 68 | 18 | 4 x ⌀14 | 160 | 2 | 140 | ||||||||||
| 32 | 140 | 100 | 78 | 18 | 4 x ⌀18 | 180 | 2 | 140 | ||||||||||
| 40 | 150 | 110 | 88 | 18 | 4 x ⌀18 | 200 | 3 | 180 | ||||||||||
| 50 | 165 | 125 | 102 | 20 | 4 x ⌀18 | 230 | 3 | 180 | ||||||||||
| 65 | 185 | 145 | 122 | 22 | 8 x ⌀18 | 290 | 3 | 200 | ||||||||||
| 80 | 200 | 160 | 138 | 24 | 8 x ⌀18 | 310 | 3 | 200 | ||||||||||
| 100 | 220 | 235 | 180 | 190 | 158 | 20 | 24 | 8 x ⌀18 | 8 x ⌀22 | 350 | 3 | 260 | ||||||
| 125 | 250 | 270 | 210 | 220 | 188 | 22 | 26 | 8 x ⌀18 | 8 x ⌀26 | 400 | 3 | 260 | ||||||
| 150 | 285 | 300 | 240 | 250 | 212 | 218 | 22 | 28 | 8 x ⌀22 | 8 x ⌀26 | 480 | 3 | 320 | |||||
| 200 | 340 | 360 | 375 | 295 | 310 | 320 | 268 | 278 | 285 | 24 | 30 | 34 | 12 x ⌀22 | 12 x ⌀26 | 12 x ⌀30 | 600 | 3 | 450 |
| 250 | 405 | 425 | 450 | 355 | 370 | 385 | 320 | 335 | 345 | 26 | 32 | 38 | 12 x ⌀26 | 12 x ⌀30 | 12 x ⌀33 | 730 | 3 | 500 |
| 300 | 460 | 485 | 515 | 410 | 430 | 450 | 378 | 395 | 410 | 28 | 34 | 42 | 12 x ⌀26 | 16 x ⌀30 | 16 x ⌀33 | 850 | 4 | 550 |
| 350 | 520 | 555 | 580 | 470 | 490 | 510 | 438 | 450 | 465 | 30 | 38 | 46 | 16 x ⌀26 | 16 x ⌀33 | 16 x ⌀36 | 980 | 4 | 600 |
| 400 | 580 | 650 | 660 | 525 | 550 | 585 | 490 | 505 | 535 | 32 | 40 | 50 | 16 x ⌀30 | 16 x ⌀36 | 16 x ⌀39 | 1100 | 4 | 650 |

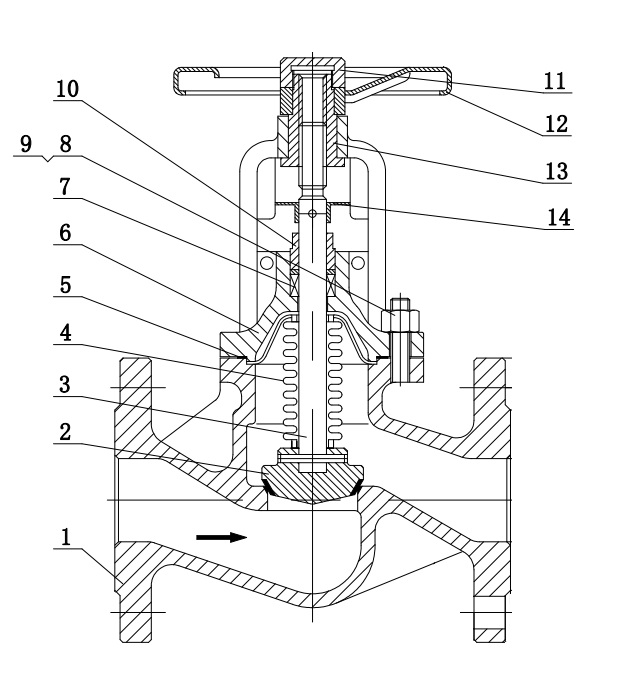

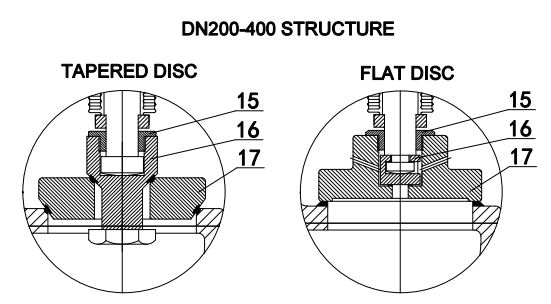

| Number | Part | Material |
|---|---|---|
| 1 | Body | A216 WCB+13Cr |
| 2 | Disc | A105 + 13Cr |
| 3 | Stem | A276 420 |
| 4 | Bellows | SS304 |
| 5 | Gasket | 304 + Graphite |
| 6 | Bonnet | A216 WCB |
| 7 | Paking | Flexible Graphite |
| 8 | Bolt | A193 B7 |
| 9 | Nut | A193 2H |
| Number | Part | Material |
|---|---|---|
| 10 | Plug Screw | A216 WCB |
| 11 | Handwheel Nut | Steel |
| 12 | Handwheel | Steel |
| 13 | Stem nut | Brass |
| 14 | Position Plate | Steel |
| 15 | CAP | A105 |
| 16 | Small Disc | A105 + 13Cr |
| 17 | Big Disc | A105 + 13Cr |
