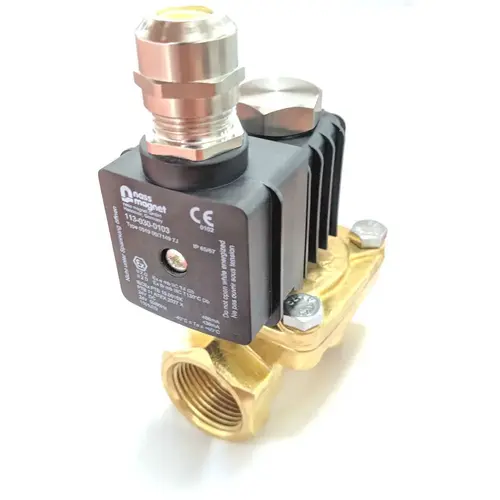

Brass Zero Differential Ex Solenoid Valve

SKU: B55EX

$1,281.50
Inc GST In Stock
Free Shipping Australia Wide*

Size
Voltage


Calculate Shipping


DATA SHEET

Zero Differential IEC Ex approved Brass Solenoid Valve. Ideal for use in hazardous areas. Approved for both Ex e mb IIC T4 Gb and Ex tb mb IIIC T130℃ Db. Threads conform to ISO 7.1 Sealing Threads.

Model Port Size BSP Orifice ømm CV Pressure (BAR) Media Temperature Repair Kit Coil Specification
B55EX-3-15-*V 3/8 15 4.5 0 to 10 -10°C to 100°C Contact Sales
for Repair Kit
SC-EX
100% ED
B55EX-4-15-*V 1/2 15 4.5 0 to 10 -10°C to 100°C
B55EX-5-20-*V 3/4 20 9.3 0 to 10 -10°C to 100°C
B55EX-6-25-*V 1 25 13.2 0 to 10 -10°C to 100°C
B55EX-7-35-*V 1 1/4 35 26 0 to 10 -10°C to 100°C
B55EX-8-35-*V 1 1/2 35 26 0 to 10 -10°C to 100°C
B55EX-9-50-*V 2 50 48 0 to 5 -10°C to 100°C

*Voltages available; 24vDC, 24vAC, 110vAC, 240vAC
For Installation and Maintenance instructions please click here or find in our References section under Valve Installation and Maintenance for Solenoid Valves.

(B55EX)

Zero Differential Normally Closed EX Solenoid Valve

Size A B C D E F
3/8" 75 54 103.5 52 62 14.5
1/2" 75 54 103.5 52 62 14.5
3/4" 85 60 114.7 52 62 18
1" 100 70 121 52 62 23
1 1/4" 120 90 140.5 52 62 33
1 1/2" 120 90 140.5 52 62 33
2" 150 120 157.3 52 62 40.5

All Dimensions in mm unless shown otherwise.

EX Approved Solenoid Valve Coil

Item Material
Solenoid Tube 316 Stainless Steel
Solenoid Core Stainless Steel
Solenoid Coil Magnet Wires
Seal FKM
Spring Stainless Steel
Valve Body Brass
Diaphragm Base Brass
Leak Proof O-Ring FKM

Size 3/8" to 2" BSP
Function Normally Closed (power to open)
Valve Operation Coupled Diaphragm
Body Brass
Seat FKM
Pressure Range 0 to 10 BAR
Media Petrochemical
