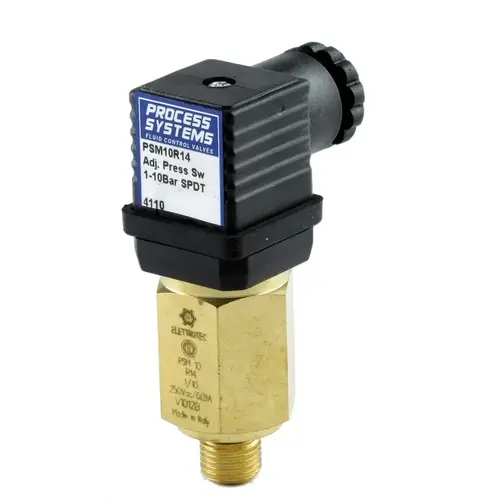

Brass Pressure Switch

SKU: PSM

$181.50
Inc GST In Stock
Free Shipping Australia Wide*

Switching Range


Calculate Shipping


DATA SHEET

Adjustable pressure switch which are single pole double throw (SPDT) meaning they can be wired normally closed or normally open. Electrical connection is by an IP65 DIN plug (PG9) and port connection is a 1/4" BSP parrallel thread with an oring gasket. 6 Amp resitive and 2 Amp inductive with a 30% of full scale Hysterisis. Typical uses include: pneumatic, hydraulic, lubrication and general industry.

Model Adjustment Range (BAR) Max Over Pressure (bar) Body Material Membrane Material Snubber Repeatability (BAR) Weight (grams)
PSM2R14 0.2 – 2 80 Brass NBR No ±0.2 100
PSM10R14 1-10 80 Brass NBR No ±0.4 100
PSM2R14APS 0.2-2 300 Brass NBR Yes ±0.2 100
PSM10R14APS 1-10 300 Brass NBR Yes ±0.4 100
PSM50R14S 10-50 300 Brass NBR Yes ±2 100
PSM100R14s 10-100 300 Brass NBR Yes ±3 100

Pressure Switch Wiring Diagramme

(PSM)

Switching Range 0.2 to 100 BAR
Body Plated Steel or Brass
Function Single Pole Double Throw (SPDT)
Voltage Multi Voltage (0 to 240v AC/DC)
Current 6 amp resistive and 2 amp inductive
Factory Accredited CE, ISO 9001, TUV
