SKU: GLOW3

ANSI 300 Flanged Cast Steel Globe Valve

From $506.00

Inc GST
In Stock
Make an Enquiry

Carbon Steel ANSI 300 Flanged Globe Valve with metal seat. Designed and manufactured to BS 1873, Face to Face to ASME B16.10 with flanges to ASME B16.5, Tested by EN 12266-1. Stainless Steel reinforced graphite gasket and flexible graphite packing. 13CR reinforced seats and disc for greater durability and wear. Great for steam and high temperature applications. Globe Valves are also regularly used over gate valves or other manual control valves where the user wants to achieve a greater degree of flow control. As the shaft comes down it has a 'globe shape' on the bottom of it which slowly cuts down the flow before shutting off on the seat. All globe valves come with cast heat numbers to give quality assurance for testing and mil certificates.

Model DN Pressure Range (at Ambient Temp) Media Temp Weight (kg)
GLOW3-050 50 0 to 50 Bar 315°C at 38 Bar 25
GLOW3-065 65 0 to 50 Bar 315°C at 38 Bar 32
GLOW3-080 80 0 to 50 Bar 315°C at 38 Bar 38
GLOW3-100 100 0 to 50 Bar 315°C at 38 Bar 56
GLOW3-150 150 0 to 50 Bar 315°C at 38 Bar 96

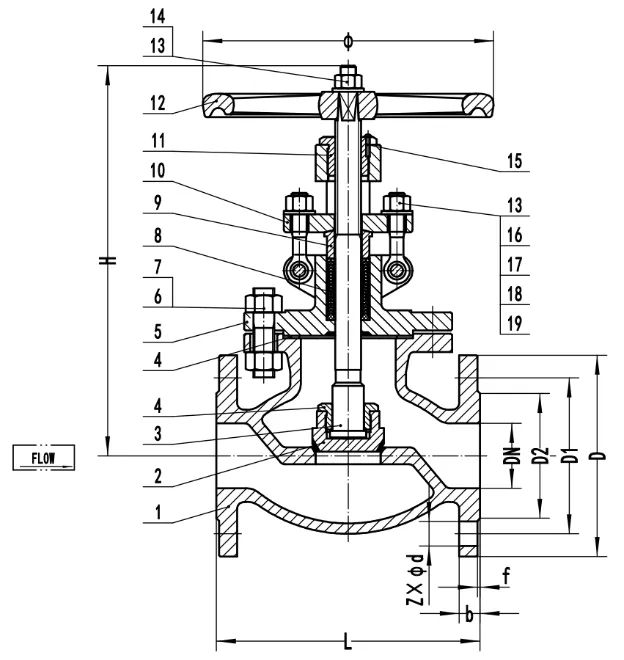

Model NPS L D D1 D2 b f z-⌀d
GLOW3-050 2" 267 165 127 92.1 20.7 2 8-19
GLOW3-065 2-1/2" 292 190 149.2 104.8 23.9 2 8-22
GLOW3-080 3" 318 210 168.3 127 27 2 8-22
GLOW3-100 4" 356 255 200 157.2 30.2 2 8-22
GLOW3-150 6" 444 320 269.9 215.9 35 2 12-22

All dimensions in mm unless specified



No Part Name Material
1 Body ASTM A216-WCB
2 Seat Deposited 13Cr
3 Disc ASTM A105 deposited 13Cr
4 Stem ASTM A182-F6a
5 Bonnet Bolt ASTM A193 Gr.B7
6 Bonnet Bolt Nut ASTM A194 Gr.2H
7 Gasket Flexible Graphite/304
8 Back Seat Bushing ASTM A276-420
9 Packing Flexible Graphite
10 Bonnet ASTM A216-WCB
11 Stem Nut Copper Alloy
12 Handwheel Cast Iron

Size 50mm to 150mm
Body Carbon Steel (WCB)
Seat 13Cr reinforced steel
Pressure 50 Bar @ ambient
Operation Handwheel rising stem
