SKU: ALV620F3-C4

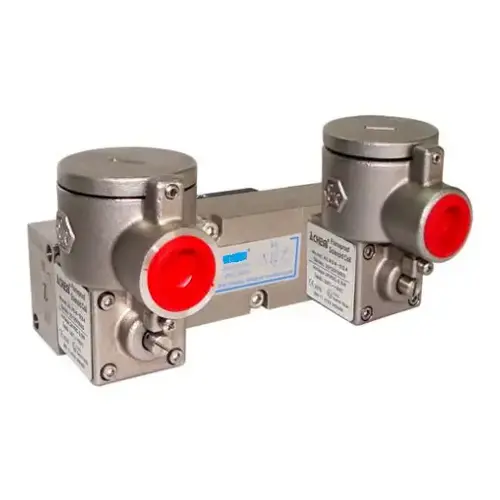

5 Way 2 position Stainless Steel Exd Namur Double Solenoid valve

316 Stainless Steel 5/2 IECex approved bi stable Namur

From $1,941.50

Inc GST
In Stock
Make an Enquiry

Our 5 way 2 position stainless steel exd approved namur solenoid valve is suitable for hazardous areas where there is a need for a solenoid valve to operate.  Bi stable configuration (solenoid/solenoid). Threads conform to ISO 7.1 Sealing Threads. IECEx Cert No. IECEx CQM 12.0022X (Ex d II C T6 Gb), NEPSI Cert No. GYB17.1935X (Ex d II C T6 Gb; Ex tD A21 IP6X T85°C).

Model Voltage Function Port Size Orifice Cv Media Temp Media Pressure
ALV620F3-C4-1 240v AC Solenoid/Solenoid 1/4" 6mm 1.1 -25°C to 80°C 2 to 8 BAR
ALV620F3-C4-2 110v AC Solenoid/Solenoid 1/4" 6mm 1.1 -25°C to 80°C 2 to 8 BAR
ALV620F3-C4-8 24v DC Solenoid/Solenoid 1/4" 6mm 1.1 -25°C to 80°C 2 to 8 BAR

Stainless Steel Namur Solenoid Valve Exd Wiring Diagrame

Size 1/4" BSP
Function 5 way 2 position double solenoid namur with manual override
Valve Operation Servo Assisted
Body 316 Stainless Steel
Seat NBR
Pressure Range 1.5 to 8 BAR
Media Air

.
