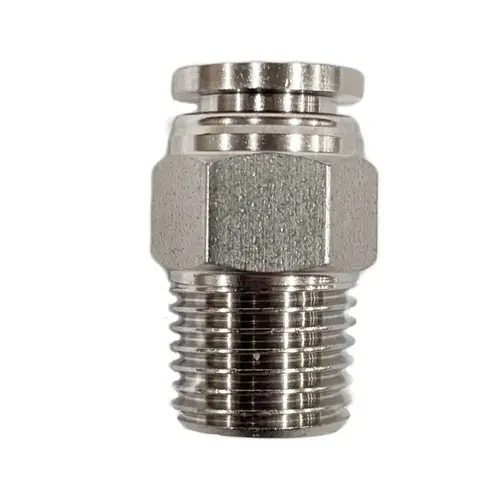

316 Stainless Steel Push Fit Straight Union

SKU: SPC

$8.80
Inc GST In Stock
Free Shipping Australia Wide

Thread Size
O.D Tube Size


DATA SHEET

316 Stainless Steel Tapered male BSP threaded straight connector push fit fitting. Great for use in corrossive environments such as water treatment plants or other industires such as food & beverage. Tested and passed to US FDA Generally Recognized As Safe (GRAS) and US Cookware Manufacture Assosication (CMA) metal specifications for Stainless Steel.

Material 316L Stainless Steel Body, FKM O-ring
Pressure Range 0 to 25 BAR
Temperature Range -10℃ to 120℃

(SPC)

Stainless Steel Straight Push Fit Threaded Dimensions

Model Tube L1 L CH
SPC04-M5 4 4 22 11
SPC04-01 4 8 20 11
SPC04-02 4 11 24 14
SPC04-03 4 11 24 17
SPC06-M5 6 5 24 11
SPC06-01 6 8 23 11
SPC06-02 6 11 23 14
SPC06-03 6 11 23 17
SPC08-01 8 8 25 14
SPC08-02 8 11 24 14
SPC08-03 8 11 24 17
SPC10-02 10 11 30 17
SPC10-03 10 11 24 17
SPC10-04 10 15 28 22
SPC12-03 12 11 28 19
SPC12-04 12 15 28 22

All dimensions in mm unless shown otherwise.

Tube Size 4mm to 12mm
Thread Size M5 to 1/2"
Function Male Straight Connector Push Fit
Cert FDA Compliant
