316 Stainless Steel Imperial Push Fit Bulkhead Connector

From $20.90

In Stock
Make an Enquiry

316 Stainless Steel Bulkhead Connector push fit fitting. Great for use in corrossive environments such as water treatment plants or other industires such as food & beverage. Tested and passed to US FDA Generally Recognized As Safe (GRAS) and US Cookware Manufacture Assosication (CMA) metal specifications for Stainless Steel.

Material 316L Stainless Steel Body, FKM O-ring
Pressure Range 0 to 20 BAR
Temperature Range -10℃ to 120℃

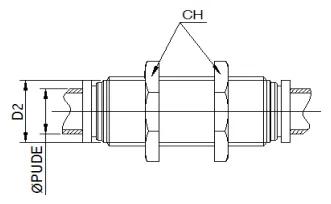

Stainless Steel Bulkhead Connector Push Fit

Model Tube Thread L1 D2 CH
SPM04 4 M11x1 32 12 17
SPM06 6 M13x1 34 13 17
SPM08 8 M15x1 36 15 19
SPM10 10 M17x1 38 17 22
SPM12 12 M22x1 40 19 24

All dimensions in mm unless shown otherwise.

Tube Size 4mm to 12mm
Function Bulkhead Union Push Fit
Cert FDA Compliant
