316 Stainless Steel Butt Weld Manual Ball Valve

From $71.50

Inc GST
In Stock
Make an Enquiry

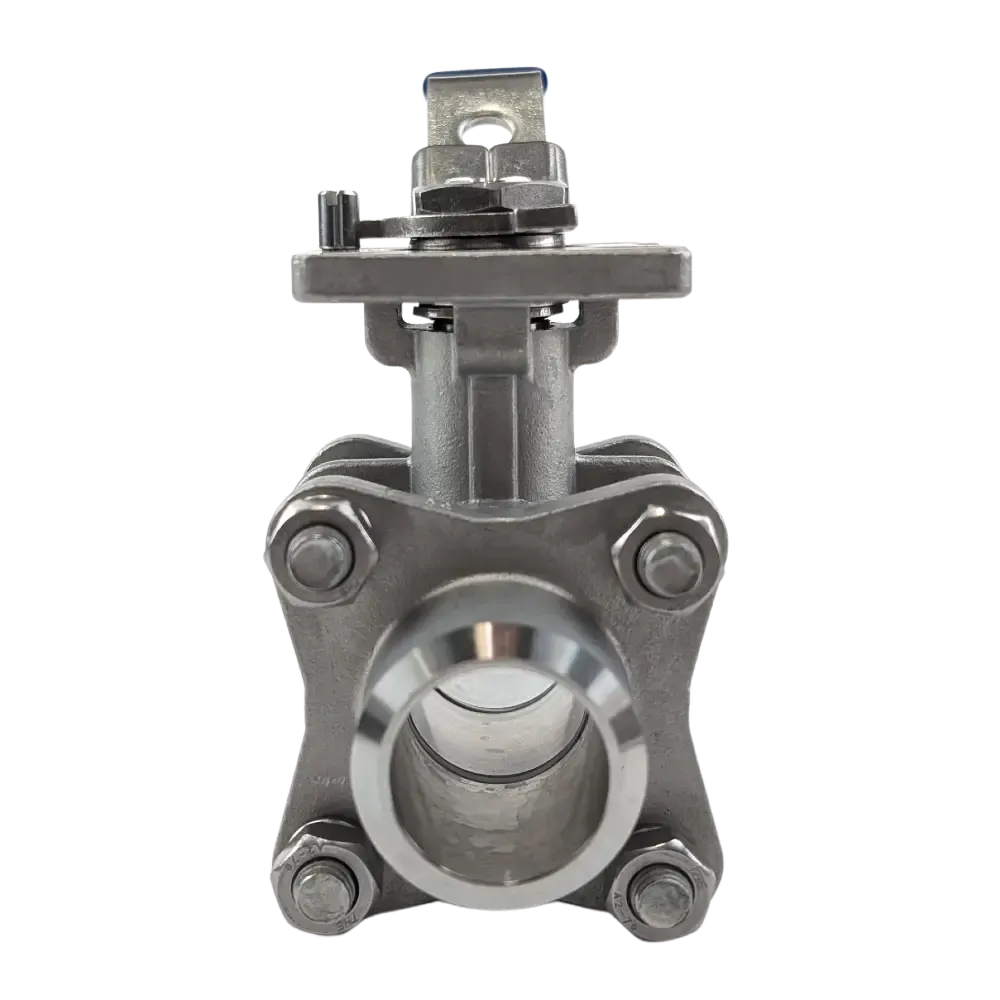

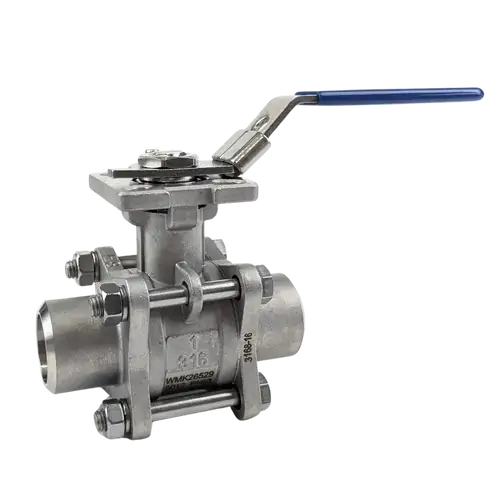

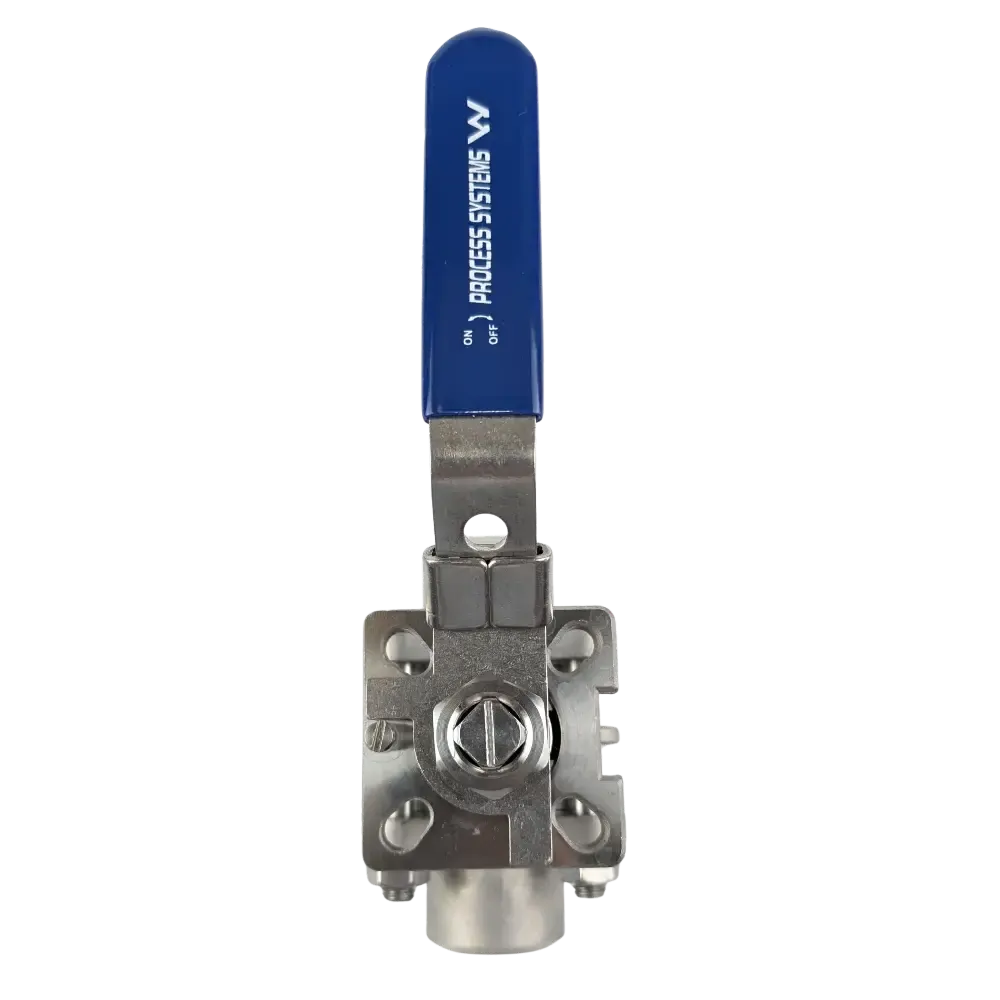

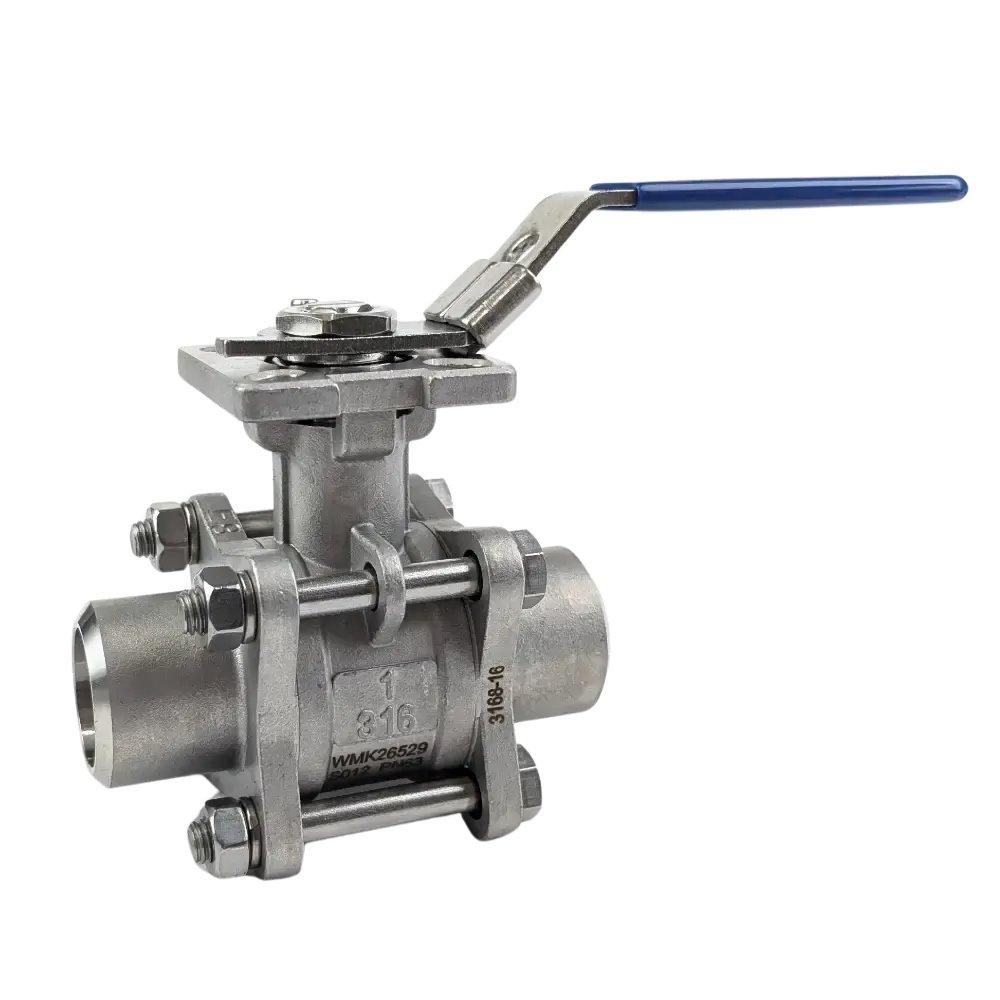

High performance 3 piece full bore 316 Stainless Steel ball valve with Butt Weld connections. Self adjusting stem packing assembly with belleville spring for temperature fluctuations and vibration. Pre drilled metric hole on ISO5211 direct mounting pad to minimise any thermal transfer from valve to actuator. Reinforced PTFE seats for temperatures up to 180°C. This ball valve has a lockable lever operation so it can be locked in one position if needed. Typical applications include water treatment, chemical, marine, petrochemical and general industry. Length to DIN3202-M3 and mounting pad to ISO5211.

Model Size (Butt Weld) Size (mm) Media Pressure Media Temperature Torque @ zero pressure(Nm) Torque @ Full Pressure (Nm)
BLSB2-L-RT 1/4 8 Vacuum (29" Hg) to 63 Bar (10 Bar Steam) -20°C to 180°C 4 5.5
BLSB3-L-RT 3/8 10 Vacuum (29" Hg) to 63 Bar (10 Bar Steam) -20°C to 180°C 4 5.5
BLSB4-L-RT 1/2 15 Vacuum (29" Hg) to 63 Bar (10 Bar Steam) -20°C to 180°C 5 7
BLSB5-L-RT 3/4 20 Vacuum (29" Hg) to 63 Bar (10 Bar Steam) -20°C to 180°C 8 10
BLSB6-L-RT 1 25 Vacuum (29" Hg) to 63 Bar (10 Bar Steam) -20°C to 180°C 10 13
BLSB7-L-RT 1 ¼ 32 Vacuum (29" Hg) to 63 Bar (10 Bar Steam) -20°C to 180°C 14 18.5
BLSB8-L-RT 1 ½ 40 Vacuum (29" Hg) to 63 Bar (10 Bar Steam) -20°C to 180°C 18 24
BLSB9-L-RT 2 50 Vacuum (29" Hg) to 63 Bar (10 Bar Steam) -20°C to 180°C 25 30
BLSB10-L-RT 2 ½ 65 Vacuum (29" Hg) to 63 Bar (10 Bar Steam) -20°C to 180°C 48 63
BLSB11-L-RT 3 80 Vacuum (29" Hg) to 63 Bar (10 Bar Steam) -20°C to 180°C 75 94
BLSB12-L-RT 4 100 Vacuum (29" Hg) to 63 Bar (10 Bar Steam) -20°C to 180°C 110 145



Stainless Steel Ball Valve Pressure vs Temperature

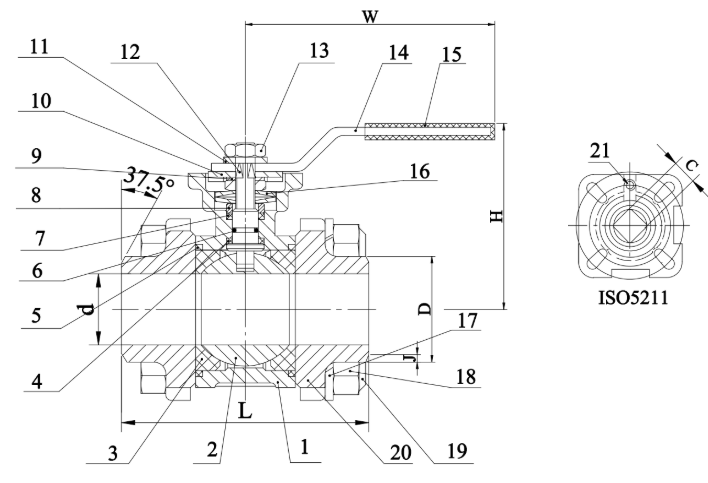

Butt Weld Ball Valve Dimensions

Size (") SIZE (mm) d L H W J D C ISO5211 Weight (Kgs)
1/4" DN8 11 70 59 115 1.1 18.1 9 F03 0.45
3/8" DN10 12.5 70 59 115 1.1 18.1 9 F03 0.46
1/2" DN15 15 75 70 117 1.75 21.7 9 F03F04 0.5
3/4" DN20 20 78 90 134 2 27.2 11 F04/F05 0.89
1" DN25 25 87 100 134 2.5 34 11 F04/F05 1.28
1-1/4" DN32 32 110 98 203 2.75 42.7 14 F05/F07 1.99
1-1/2" DN40 40 125 104 203 3 48.6 14 F05/F07 2.96
2" DN50 50 150 112 203 3.25 60.5 14 F05/F07 3.75
2-1/2" DN65 65 190 140 255 3.5 76 17 F07/F10 7.8
3" DN80 80 220 153 255 4 93 17 F07/F10 12.4
4" DN100 100 270 166 302 5.5 116 17 F07/F10 20.8

All dimensions in mm unless shown otherwise.

2 way 3 piece Stainless Steel Ball Valve Construction

Item Part Material Qty
1 Body CF8M 1
2 Ball SS316 1
3 Ball Seat 15%RPTFE 2
4 Thrust Washer PTFE 1
5 Body Gasket PTFE 2
6 O-Ring Viton 1
7 Stem Packing PTFE 1
8 Gland SS304 1
9 Tab Washer SS304 1
10 Stopper SS304 1
11 Spring Washer SS304 1
Item Part Material Qty
12 Stem SS316 1
13 Nut SS304 2
14 Handle SS304 1
15 Handle Cover Plastic 1
16 Belleville Washer SS301 2
17 Spring Washer SS304 4
18 Nut SS304 4
19 Bolt SS304 4
20 Cap CF8M (1.4408) 2
21 Stop Pin SS304 1



Size 1/4" to 4" Butt Weld
Body 316 Stainless Steel 3 piece
Seat Reinforced PTFE
Pressure 63 BAR
Temperature -20°C to 180°C
Actuation Lockable Lever

DATA SHEET

Others Also Bought

BLSB

316 Stainless Steel Butt Weld Manual Ball Valve

Features:

Size 1/4" to 4" Butt Weld
Body 316 Stainless Steel 3 piece
Seat Reinforced PTFE
Pressure 63 BAR
Temperature -20°C to 180°C
Actuation Lockable Lever

Description:

High performance 3 piece full bore 316 Stainless Steel ball valve with Butt Weld connections. Self adjusting stem packing assembly with belleville spring for temperature fluctuations and vibration. Pre drilled metric hole on ISO5211 direct mounting pad to minimise any thermal transfer from valve to actuator. Reinforced PTFE seats for temperatures up to 180°C. This ball valve has a lockable lever operation so it can be locked in one position if needed. Typical applications include water treatment, chemical, marine, petrochemical and general industry. Length to DIN3202-M3 and mounting pad to ISO5211.

Model Size (Butt Weld) Size (mm) Media Pressure Media Temperature Torque @ zero pressure(Nm) Torque @ Full Pressure (Nm)
BLSB2-L-RT 1/4 8 Vacuum (29" Hg) to 63 Bar (10 Bar Steam) -20°C to 180°C 4 5.5
BLSB3-L-RT 3/8 10 Vacuum (29" Hg) to 63 Bar (10 Bar Steam) -20°C to 180°C 4 5.5
BLSB4-L-RT 1/2 15 Vacuum (29" Hg) to 63 Bar (10 Bar Steam) -20°C to 180°C 5 7
BLSB5-L-RT 3/4 20 Vacuum (29" Hg) to 63 Bar (10 Bar Steam) -20°C to 180°C 8 10
BLSB6-L-RT 1 25 Vacuum (29" Hg) to 63 Bar (10 Bar Steam) -20°C to 180°C 10 13
BLSB7-L-RT 1 ¼ 32 Vacuum (29" Hg) to 63 Bar (10 Bar Steam) -20°C to 180°C 14 18.5
BLSB8-L-RT 1 ½ 40 Vacuum (29" Hg) to 63 Bar (10 Bar Steam) -20°C to 180°C 18 24
BLSB9-L-RT 2 50 Vacuum (29" Hg) to 63 Bar (10 Bar Steam) -20°C to 180°C 25 30
BLSB10-L-RT 2 ½ 65 Vacuum (29" Hg) to 63 Bar (10 Bar Steam) -20°C to 180°C 48 63
BLSB11-L-RT 3 80 Vacuum (29" Hg) to 63 Bar (10 Bar Steam) -20°C to 180°C 75 94
BLSB12-L-RT 4 100 Vacuum (29" Hg) to 63 Bar (10 Bar Steam) -20°C to 180°C 110 145



Stainless Steel Ball Valve Pressure vs Temperature

.

316 Stainless Steel Butt Weld Manual Ball Valve

BLSB

Dimensions:

Butt Weld Ball Valve Dimensions

Size (") SIZE (mm) d L H W J D C ISO5211 Weight (Kgs)
1/4" DN8 11 70 59 115 1.1 18.1 9 F03 0.45
3/8" DN10 12.5 70 59 115 1.1 18.1 9 F03 0.46
1/2" DN15 15 75 70 117 1.75 21.7 9 F03F04 0.5
3/4" DN20 20 78 90 134 2 27.2 11 F04/F05 0.89
1" DN25 25 87 100 134 2.5 34 11 F04/F05 1.28
1-1/4" DN32 32 110 98 203 2.75 42.7 14 F05/F07 1.99
1-1/2" DN40 40 125 104 203 3 48.6 14 F05/F07 2.96
2" DN50 50 150 112 203 3.25 60.5 14 F05/F07 3.75
2-1/2" DN65 65 190 140 255 3.5 76 17 F07/F10 7.8
3" DN80 80 220 153 255 4 93 17 F07/F10 12.4
4" DN100 100 270 166 302 5.5 116 17 F07/F10 20.8

All dimensions in mm unless shown otherwise.

.

316 Stainless Steel Butt Weld Manual Ball Valve

BLSB

Construction:

2 way 3 piece Stainless Steel Ball Valve Construction

Item Part Material Qty
1 Body CF8M 1
2 Ball SS316 1
3 Ball Seat 15%RPTFE 2
4 Thrust Washer PTFE 1
5 Body Gasket PTFE 2
6 O-Ring Viton 1
7 Stem Packing PTFE 1
8 Gland SS304 1
9 Tab Washer SS304 1
10 Stopper SS304 1
11 Spring Washer SS304 1
Item Part Material Qty
12 Stem SS316 1
13 Nut SS304 2
14 Handle SS304 1
15 Handle Cover Plastic 1
16 Belleville Washer SS301 2
17 Spring Washer SS304 4
18 Nut SS304 4
19 Bolt SS304 4
20 Cap CF8M (1.4408) 2
21 Stop Pin SS304 1
