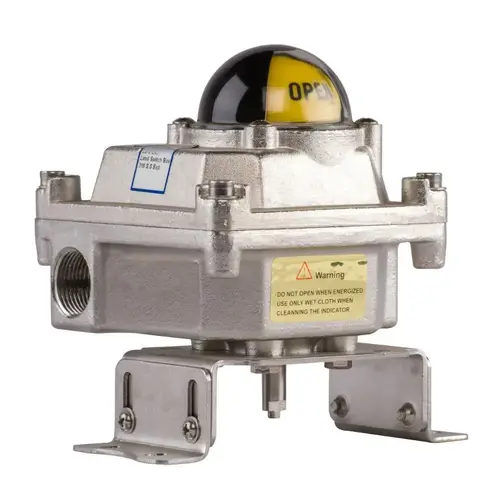

316 SS Limit Switch Box for Pneumatic Actuator IECEx

SKU: ALS600M2EX

$1,166.00
Inc GST In Stock
Free Shipping Australia Wide*


Calculate Shipping


DATA SHEET

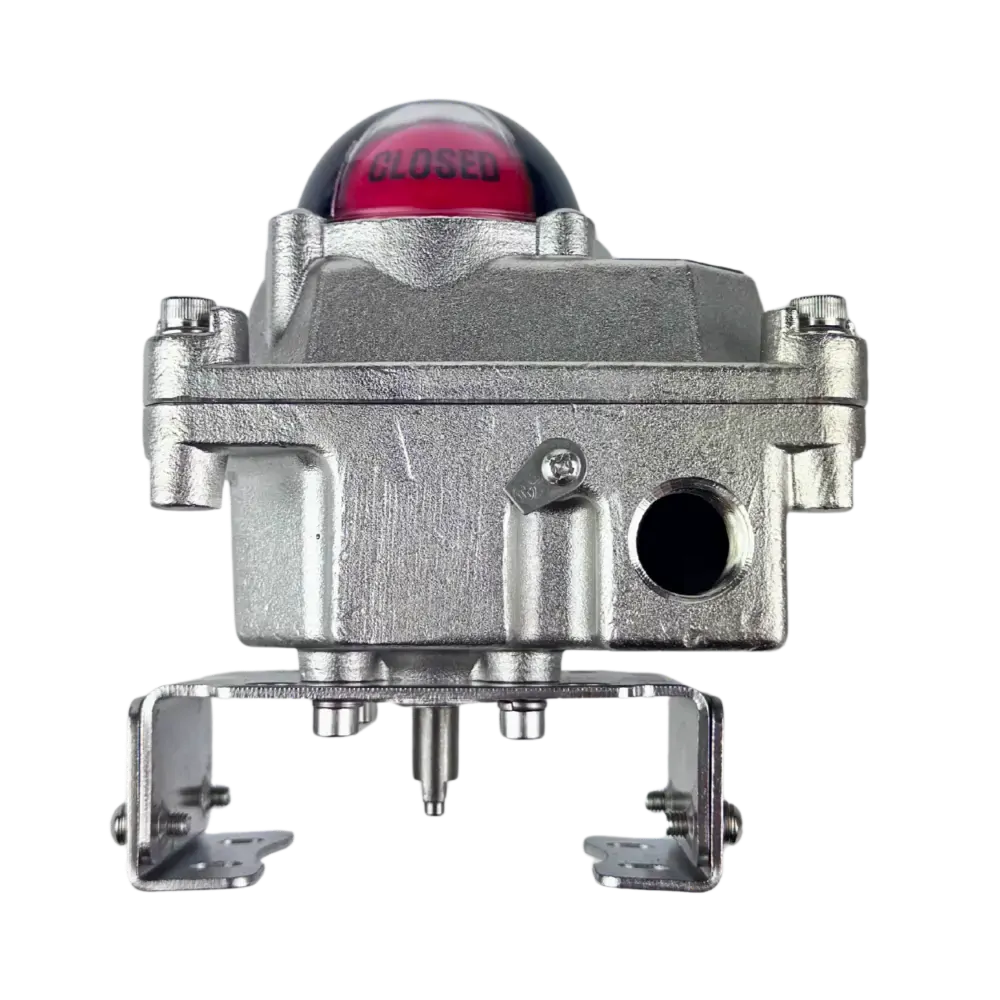

Our hazardous area limit switch box is designed to mount onto the top of pneumatic actuators to give position feedback. Four adjustable SPDT mechanical switches (two for open and two for closed) are wired into a terminal block. It also has termination for a solenoid valve so that a single multiple cable can be used. The solenoid can then be wired through the second conduit entry. The sight dome is colour coded for instant clarification of the valve position. Yellow for open and red for closed. st.

Enclosure 316 Stainless Steel
Coating Dichromate conversion with polyester powder coating
O-Rings NBR
Environment IP66
Fasteners Stainless Steel
Shaft Stainless Steel
Conduit Entries Two M20 x 1.5
Terminal Strip Contacts 14
Mounting Bracket MB- 3.4:30 x 80, 130 H:20, 30 carbon steel or 316 SS
Temperature Rating -20°C to 85°C
Operating Voltage Max 15A

(ALS600M2EX)

Stainless Steel body limit switch box.
Two M20x1.5 cable entry. High visability dome indicator.
2 x SPDT 15A 125-250vAC Honywell limit switches for Open/Close indication
Ex d IIC T6 IP66. M20x1.5 connection. -20 to+50deg.C IECEx CQM 12.0047

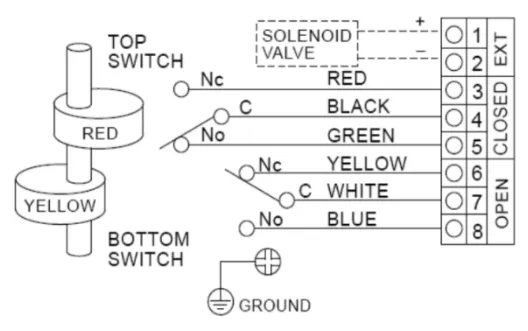

ALS Limit Switch Box Wiring Diagram

Function IECex Limit Switch Box
Switches 2 x SPDT
Body 316 Stainless Steel
IP Rating IP66
