SKU: BLB3E

3 way Electric Nickel Plated Brass Ball Valve

From $616.00

Inc GST
In Stock
Make an Enquiry

High performance 3 way (L and T port) full bore nickel plated brass ball valve with BSP threaded connections and an electric actuator (drive open, drive close). Self adjusting stem packing assembly with Belleville spring for temperature fluctuations and vibration. Long neck to minimise any thermal transfer from valve to actuator. PTFE seats for temperatures up to 100°C. IP67 electric actuator with visual indicator and extra limit switches. Typical applications include water treatment, petrochemical and general industry. Threads conform to ISO 7.1 Sealing Threads.

Model Size(BSP) Orifice Size (mm) Actuator Media Pressure Media Temperature
BLB3L4B-E*-T 1/2 15 0M-1 Vacuum to 10 Bar -10°C to 100°C
BLB3L5B-E*-T 3/4 20 0M-1 Vacuum to 10 Bar -10°C to 100°C
BLB3L6B-E*-T 1 25 0M-1 Vacuum to 10 Bar -10°C to 100°C
BLB3L7B-E*-T 1 ¼ 32 0M-1 Vacuum to 10 Bar -10°C to 100°C
BLB3L8B-E*-T 1 ½ 40 0M-A Vacuum to 10 Bar -10°C to 100°C

*Voltages available; 12vDC, 24vDC, 24vAC, 110vAC, 240vAC, 415vAC.

For T port change the ‘L’ to a ‘T’.

L or T port

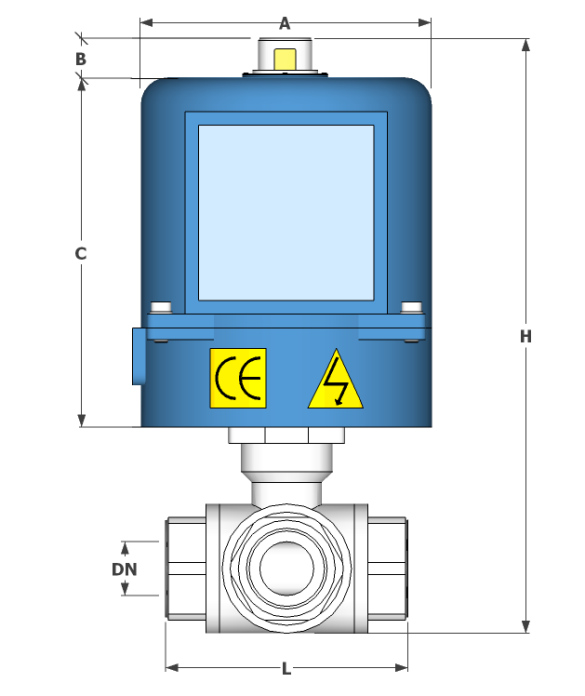

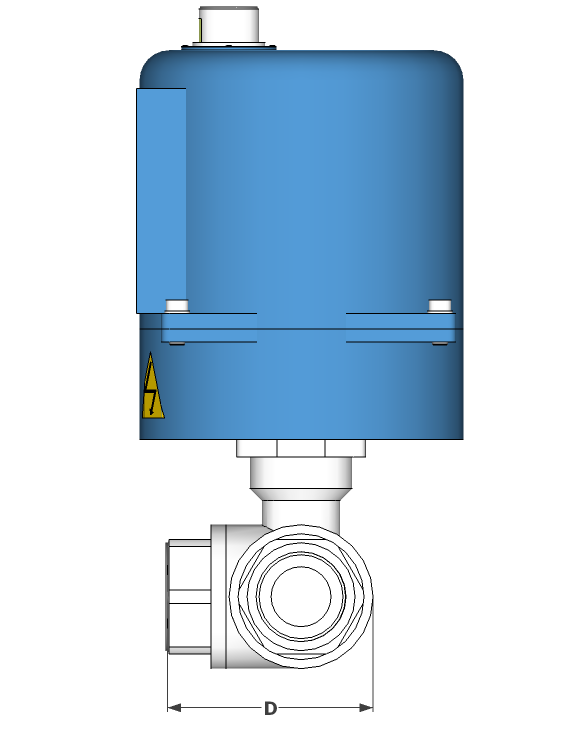

3 way electric nickel plated brass ball valve

Model DN Actuator A B C H L D
BLB3L4B-E*-RT 15 0M-1 108 17 138 310 77 60.5
BLB3L5B-E*-RT 20 0M-1 108 17 138 310 87 68
BLB3L6B-E*-RT 25 0M-1 108 17 138 310 108 82.5
BLB3L7B-E*-RT 32 0M-1 108 17 138 310 123 99.2
BLB3L8B-E*-RT 40 0M-A 108 17 183 400 139 113.7
BLB3L9B-E*-RT 50 0M-A 108 17 183 400 166 139

3 way electrically actuated nickel plated brass ball valve

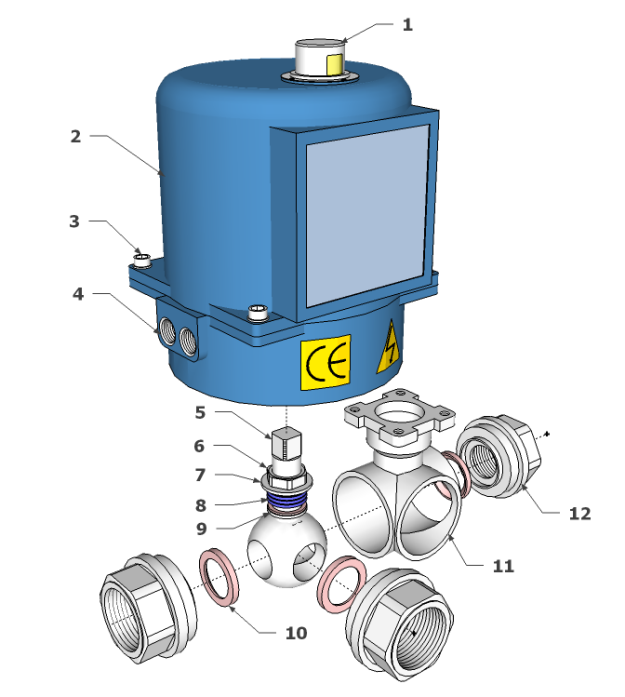

3 way electrically actuated ball valve construction



Item Article Material
1 Visual Indicator UV Stabilised Thermoplastic
2 IP67 Actuator Housing Powder Coated Aluminium
3 Housing Fasteners Stainless Steel
4 Conduit Entry Threaded
5 Drive 316 Stainless Steel
6 Retainer 316 Stainless Steel
7 Chevron Seals Teflon
8 Backing O-ring Viton
9 Thrust Washer Teflon
10 Seats Teflon
11 Body Nickel Plated Brass
12 End Connection Nickel Plated Brass

Size 1/2" to 1 1/2" BSP
Body Nickel Plated Brass
Seat PTFE
Pressure 16 BAR
Temperature -10°C to 100°C
Actuation Electric

Others Also Bought

BLB3E

3 way Electric Nickel Plated Brass Ball Valve

Features:

Size 1/2" to 1 1/2" BSP
Body Nickel Plated Brass
Seat PTFE
Pressure 16 BAR
Temperature -10°C to 100°C
Actuation Electric

Description:

High performance 3 way (L and T port) full bore nickel plated brass ball valve with BSP threaded connections and an electric actuator (drive open, drive close). Self adjusting stem packing assembly with Belleville spring for temperature fluctuations and vibration. Long neck to minimise any thermal transfer from valve to actuator. PTFE seats for temperatures up to 100°C. IP67 electric actuator with visual indicator and extra limit switches. Typical applications include water treatment, petrochemical and general industry. Threads conform to ISO 7.1 Sealing Threads.

Model Size(BSP) Orifice Size (mm) Actuator Media Pressure Media Temperature
BLB3L4B-E*-T 1/2 15 0M-1 Vacuum to 10 Bar -10°C to 100°C
BLB3L5B-E*-T 3/4 20 0M-1 Vacuum to 10 Bar -10°C to 100°C
BLB3L6B-E*-T 1 25 0M-1 Vacuum to 10 Bar -10°C to 100°C
BLB3L7B-E*-T 1 ¼ 32 0M-1 Vacuum to 10 Bar -10°C to 100°C
BLB3L8B-E*-T 1 ½ 40 0M-A Vacuum to 10 Bar -10°C to 100°C

*Voltages available; 12vDC, 24vDC, 24vAC, 110vAC, 240vAC, 415vAC.

For T port change the ‘L’ to a ‘T’.

L or T port

.

3 way Electric Nickel Plated Brass Ball Valve

BLB3E

Dimensions:

3 way electric nickel plated brass ball valve

Model DN Actuator A B C H L D
BLB3L4B-E*-RT 15 0M-1 108 17 138 310 77 60.5
BLB3L5B-E*-RT 20 0M-1 108 17 138 310 87 68
BLB3L6B-E*-RT 25 0M-1 108 17 138 310 108 82.5
BLB3L7B-E*-RT 32 0M-1 108 17 138 310 123 99.2
BLB3L8B-E*-RT 40 0M-A 108 17 183 400 139 113.7
BLB3L9B-E*-RT 50 0M-A 108 17 183 400 166 139

3 way electrically actuated nickel plated brass ball valve

.

3 way Electric Nickel Plated Brass Ball Valve

BLB3E

Construction:

3 way electrically actuated ball valve construction



Item Article Material
1 Visual Indicator UV Stabilised Thermoplastic
2 IP67 Actuator Housing Powder Coated Aluminium
3 Housing Fasteners Stainless Steel
4 Conduit Entry Threaded
5 Drive 316 Stainless Steel
6 Retainer 316 Stainless Steel
7 Chevron Seals Teflon
8 Backing O-ring Viton
9 Thrust Washer Teflon
10 Seats Teflon
11 Body Nickel Plated Brass
12 End Connection Nickel Plated Brass

WARNING

These products are intended for use in industrial applications only. Do not use these products where pressures and temperatures can exceed those listed under ‘Technical Data’ and in our individual ‘Series’ data sheets. Before using these products with fluids other than these specified, for non-industrial applications, life-support systems, or other applications not within published specifications, consult Process Systems Pty Ltd. Through misuse, age, or malfunction, components used in industrial valve applications can fail in various modes. The system designer is warned to consider the failure modes of all component parts used in industrial valve applications and to provide adequate safeguards to prevent personal injury or damage to equipment in the event of such failure. System designers must provide a warning to the user in the system instructional manual if protection against a failure mode cannot be adequately provided. System designers and end users are cautioned to review specific warnings or specifications found in instruction sheets or labels packed or attached and shipped with the products. Our policy is one of continuous research and development. We therefore reserve the right to amend without notice the specifications given in this document or our individual ‘Series’ data sheets.

WARRANTY INFORMATION

All valve series and other products manufactured or distributed by Process Systems Pty. Ltd. are warranted by Process Systems to be free of defects in material and workmanship for a period of 1 year from the date of purchase or as the manufacturer warrants. Process Systems obligation under this warranty is limited to repair or replacement of the defec1ive product or refund of the purchase price paid solely at the discretion of Process Systems and provided such defective product is returned to Process Systems freight prepaid and upon examination by Process Systems such product is found defective. This warranty shall be void in the event that the product has been subject to misuse, misapplication, improper maintenance, modification or tampering. This warranty is expressed in lieu of all other warranties, expressed or implied from Process Systems Pty. Ltd. representatives or employees. Process Systems reserves the right to change Valve and Brochure specifications without notice.
