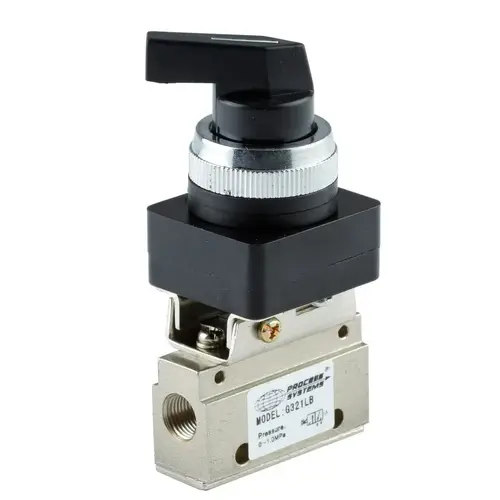

3 Way 2 position Rotary Lever Valve

SKU: ROL32

$30.25
Inc GST In Stock
Free Shipping Australia Wide*

Size


Calculate Shipping


DATA SHEET

The ROL32 series are a three way two position rotary lever valve. The lever is turned and it will stay in that position until it is turned back. Great for use as a pilot or control valve in a pneumatic system or on spring return/single acting cylinders or actuators. Simple to use, install and maintain.

3 way 2 position rotary lever valve

Specification ROL32-01 ROL32-02
Port Size G1/8” G1/4”
Button Colour Black Black
Pressure Range 0 to 10 BAR (147 psi)
Max Inlet Pressure 10 BAR (147 psi)
Medium Temperature -5 to 60°C
Body Die Cast Aluminium
End Caps Reinforced Plastic
Button Thermoplastic (Black Only)
Lubrication Not Required
Applicable Medium Air

(ROL32)

Size 1/8" to 1/4" BSP
Function 3 way 2 position rotary lever
Body Aluminium
Pressure Range 0 to 10 BAR
Media Air
