SKU: SF29

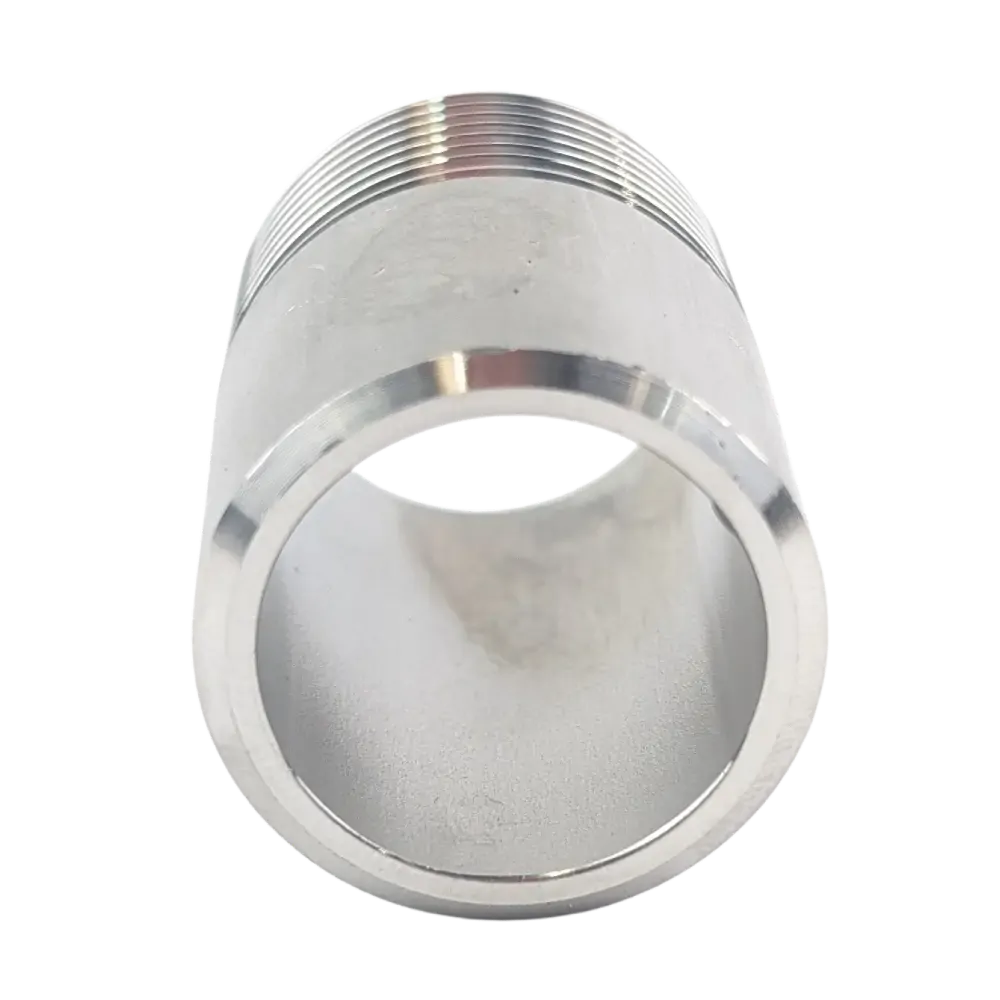

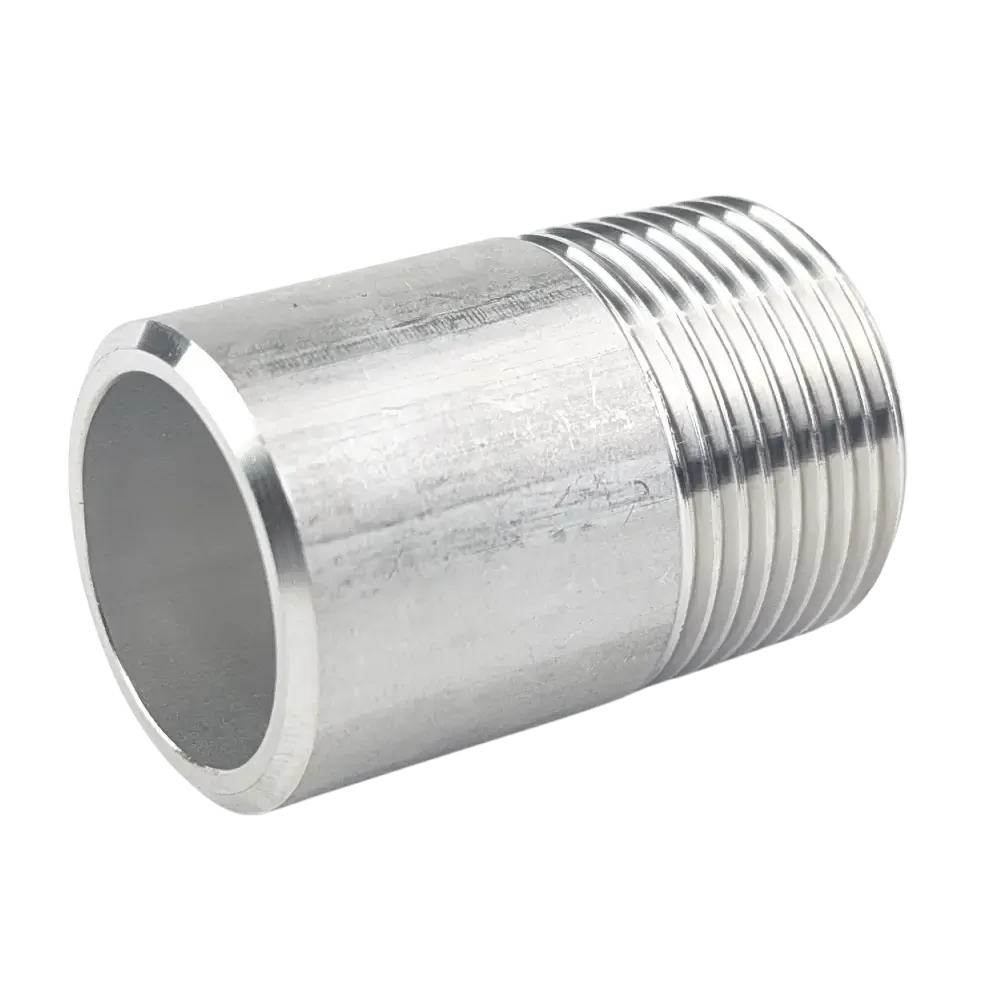

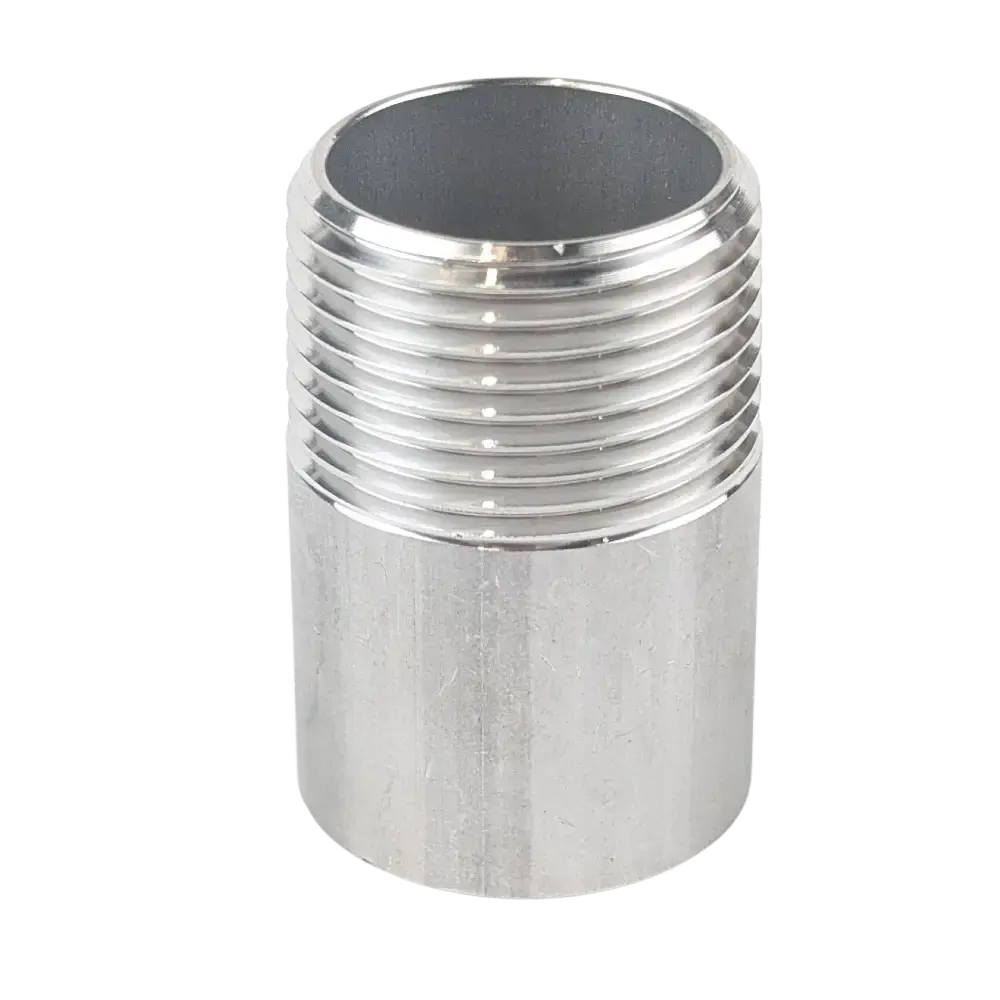

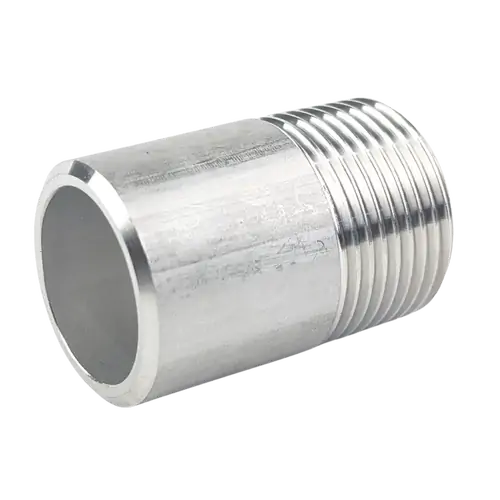

Stainless Steel Weld Nipple

From $2.75

Inc GST
In Stock
Make an Enquiry

316 Stainless Steel threaded BSPT Weld Nipple (schedule 40). Great for use in a wide range of industrial applications. All threads are qualified and fittings are acid cleaned to ensure they are free from swarf and contaminants. 150 pound pressure rating.

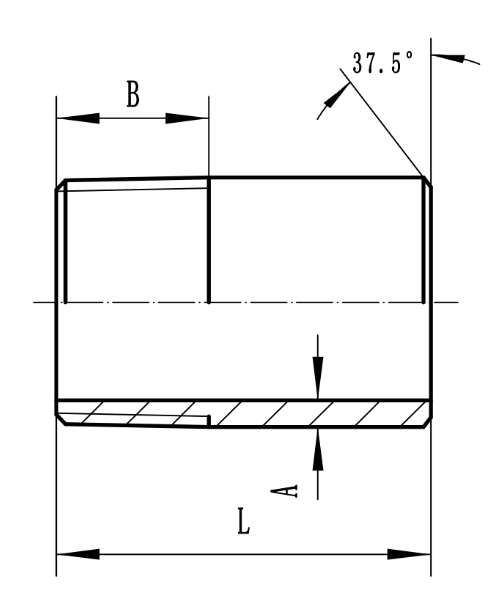

Stainless Steel Schedule 40 Weld Nipple Dimensions

Size A B L
1/8" 2 7.4 30
1/4" 2.24 11.0 30
3/8" 2.31 11.4 30
1/2" 2.77 15.0 35
3/4" 2.87 16.3 40
1" 3.38 19.1 40
1-1/4" 3.56 21.4 50
1-1/2" 3.68 21.4 50
2" 3.91 25.7 50
2-1/2" 5.16 30.2 60
3" 5.49 33.3 70
4" 6.02 39.3 80

Size 1/8" to 2" BSP
Function Weld Nipple (sch40)
Body 316 Stainless Steel
