Brackets to suit Limit Switch Boxes

SKU: SK

$44.00
Inc GST In Stock
Free Shipping Australia Wide

Model


DATA SHEET

Stainless Steel bracket to fit Namur Interface for Positioner and Limit Switch Box Mounting. Sizes available to suit both 80mm and 130mm Namur interface mountings and heights from 30mm to 60mm.

Model Namur Interface Bracket Height Actuator to Suit
SK-1 80mm x 30mm 30mm DA/SR 50-100
SK-3 130mm x 30mm 40mm DA/SR 115-240
SK-4 130mm x 30mm 60mm Suit Older / Other Actuator types

(SK)

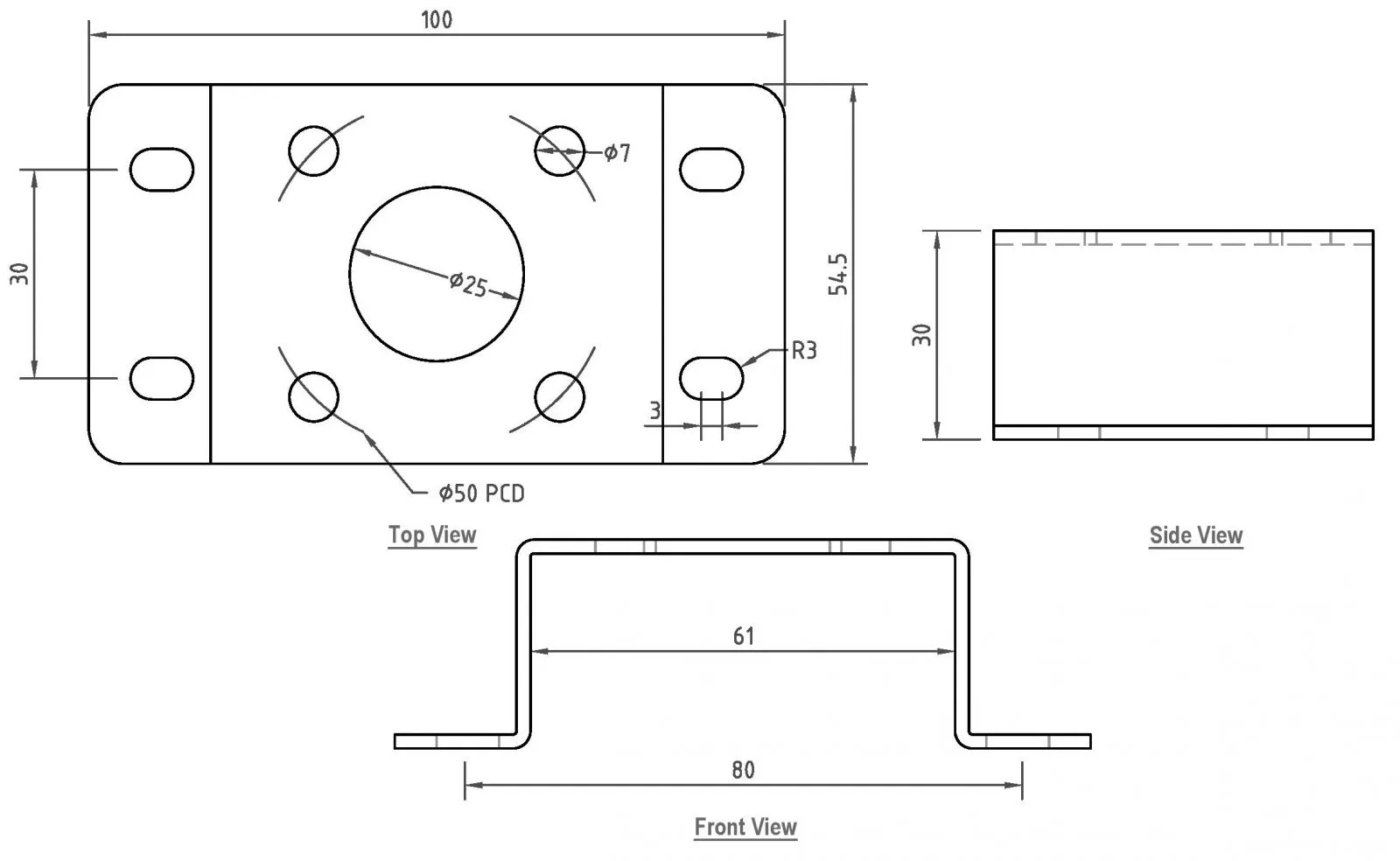

SK-1 Bracket (Standard Bracket supplied with Limit Switch)

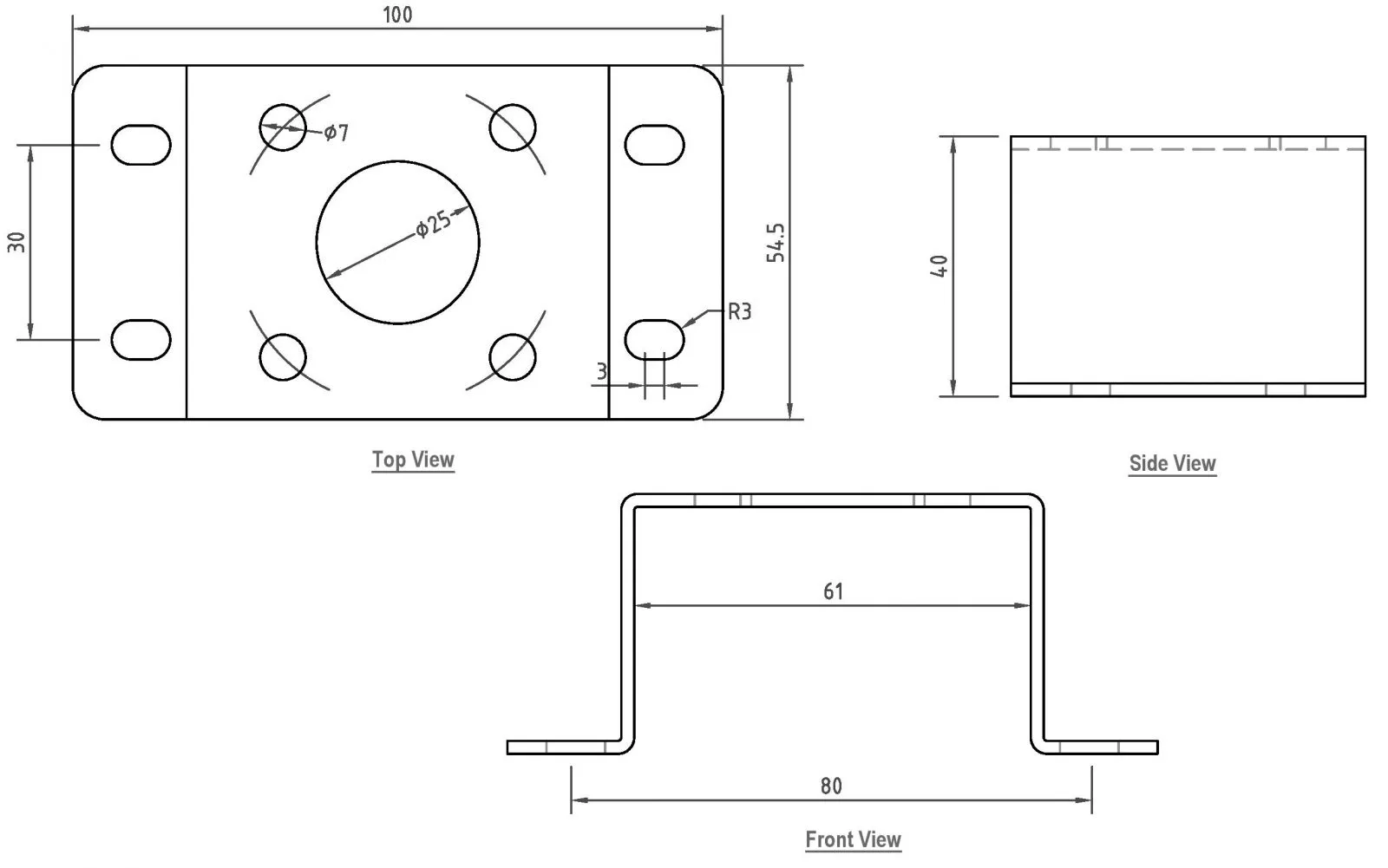

SK-2 Bracket

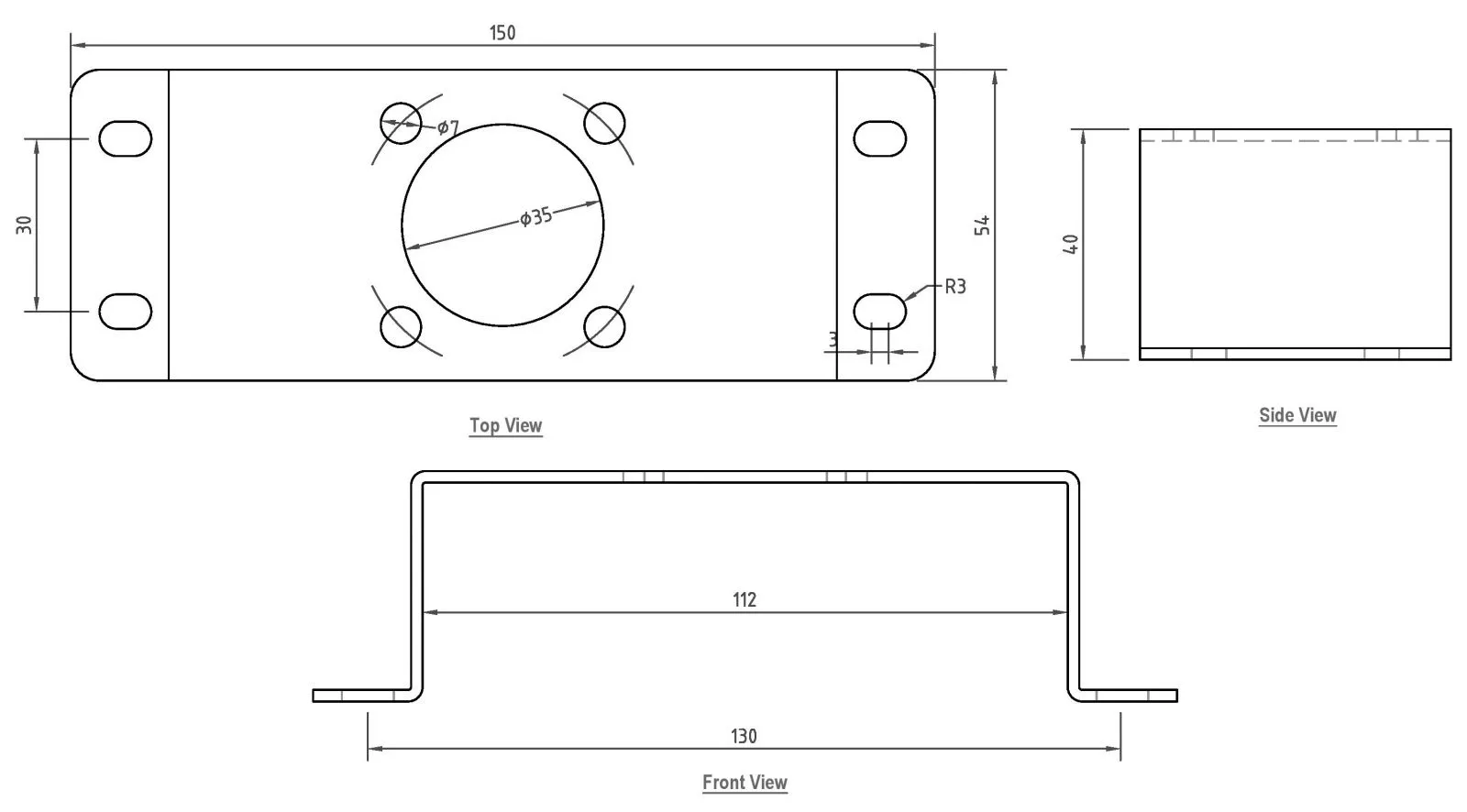

SK-3 Bracket

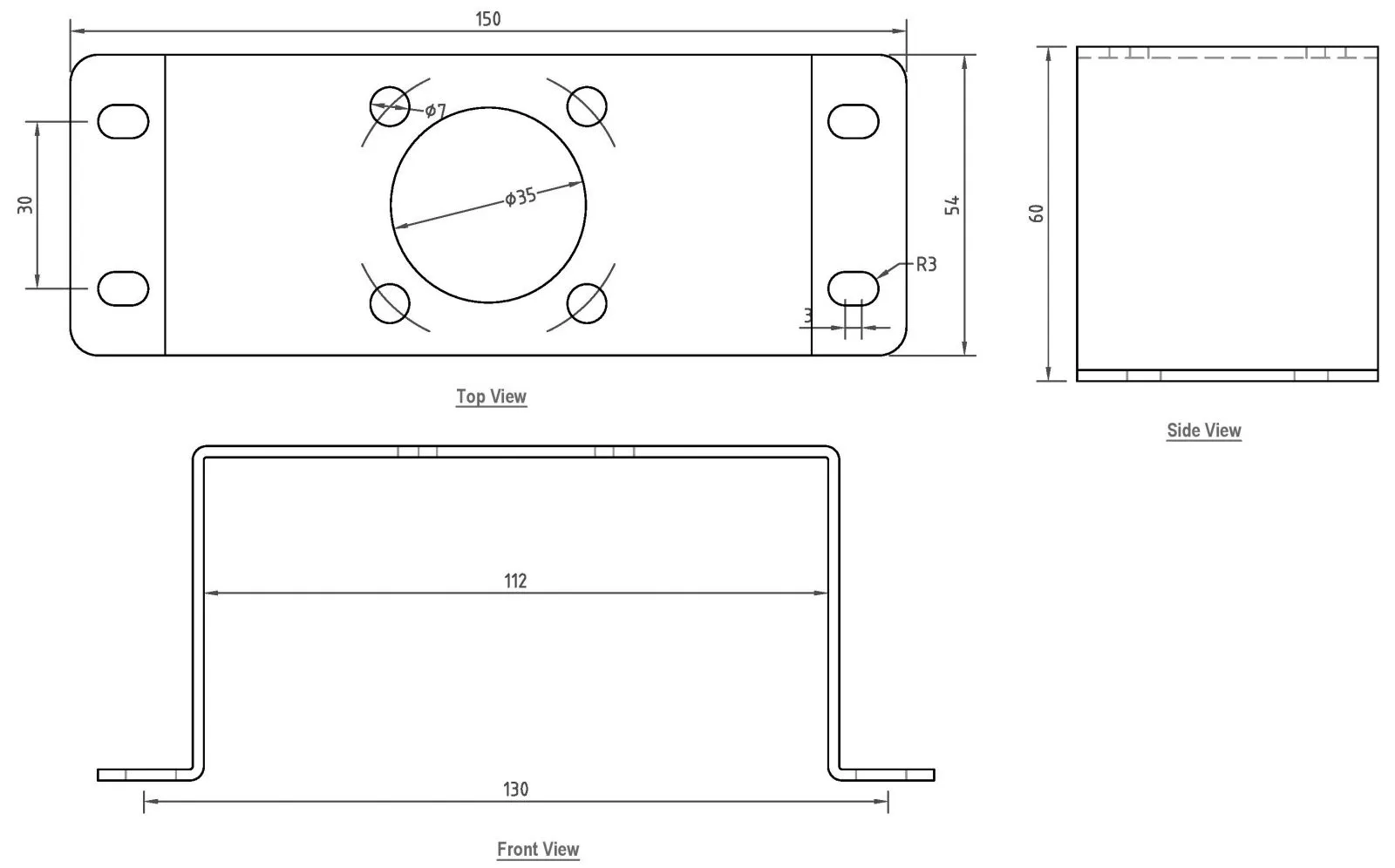

SK-4 Bracket
