SKU: PU

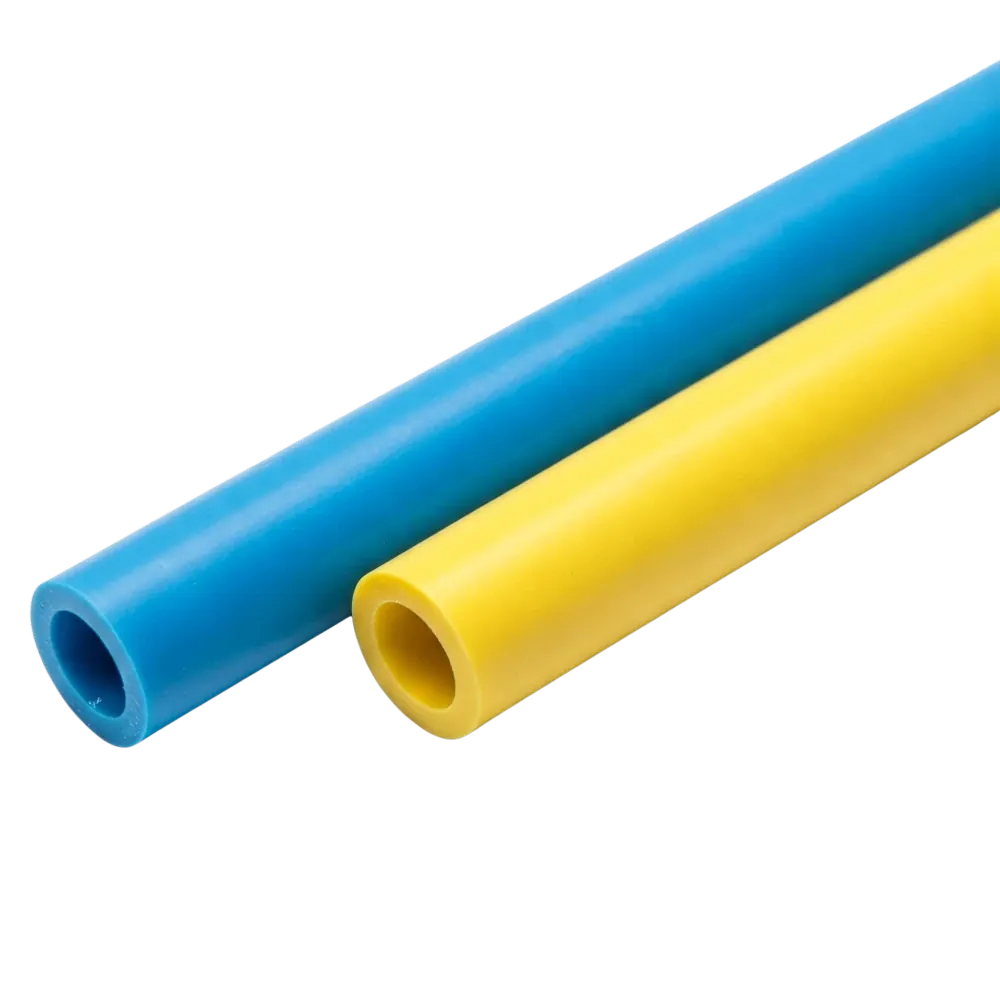

Blue / Yellow Polyurethane Metric Tubing

From $5.50

Inc GST
In Stock
Make an Enquiry

Polyester Polyurethane (PU) tubing great for airlines especially where flexibility is needed such as in cabinents. 8 BAR (@ 20°C ) maximum working pressure with a -10°C to 80°C temperature range.

Outside Diameter (mm) Inside Diameter (mm) Wall Thickness (mm) Max Working Pressure (BAR) Bursting Pressure (BAR) Bend Radius (mm)
4 2.5 .75 8 30 10
6 4 1 8 30 15
8 5 1.5 8 30 20
10 6.5 1.75 8 30 30
12 8 2 8 30 35

Size 4mm, 6mm, 8mm, 10mm, 12mm
Function Blue or Yellow Polyurethane Air Line
Length 5m, 20m, 100m
Pressure Range 0 to 8 Bar
Media Air

.
