50% OFF RRP $71.50

SKU: PLU52-02

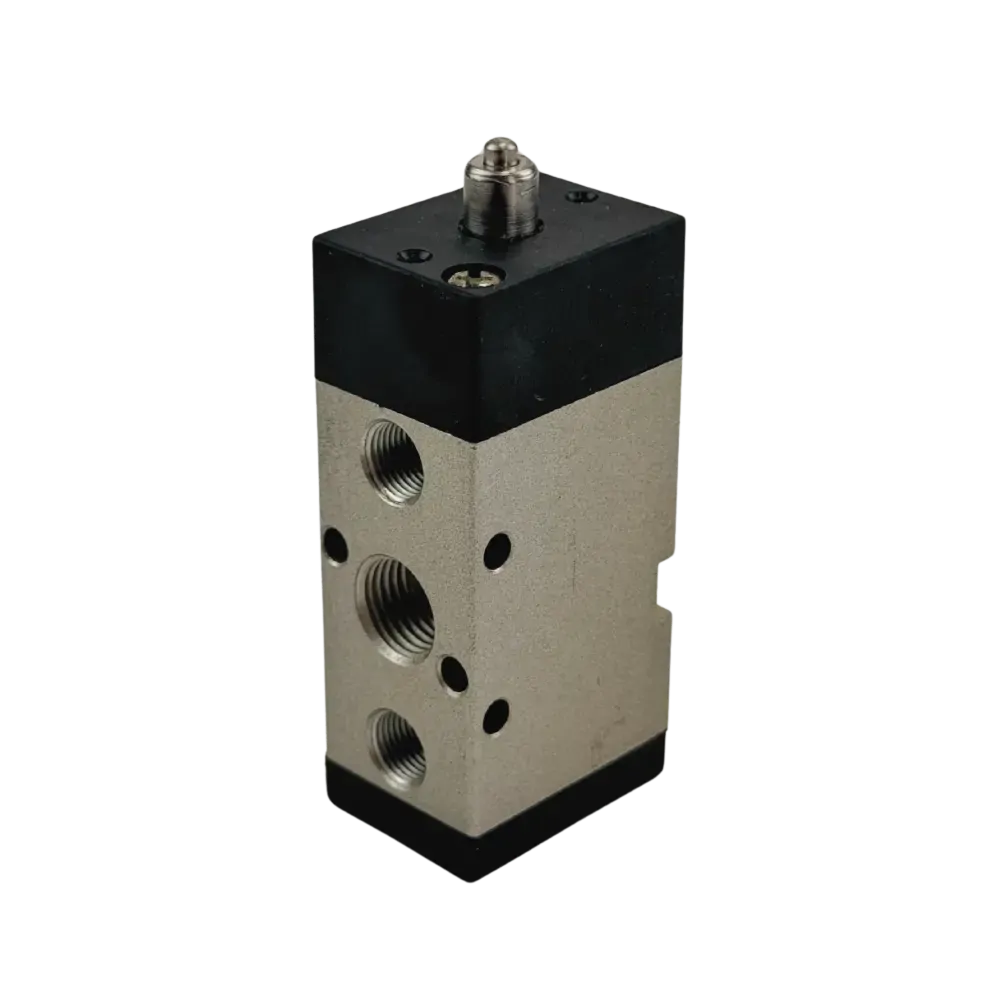

1/4" BSP 5/2 Way Plunger Spring

$35.75

Inc GST
In Stock
Make an Enquiry

The PBS52 series are a five way two position plunger spring return valve. The button is pressed down and once released the button will spring back to its resting position. Ideal for controlling cylinders or pneumatic actuators. Simple to use, install and maintain.

5 way 2 position plunger valve

Specification PLU52-02
Port Size (BSPP) 1/4"
Exhaust Port Size 1/8”
Pressure Range 0 to 10 BAR
Max Inlet Pressure 10 BAR
Medium Temperature -5 to 60°C
Body Die Cast Aluminium
End Caps Reinforced Plastic
Lubrication Not Required
Applicable Medium Air

5 way 2 position plunger valve

Size 1/4" BSP
Function 5 way 2 position plunger
Body Aluminium
Pressure Range 0 to 10 BAR
Media Air

Others Also Bought

PLU52-02

1/4" BSP 5/2 Way Plunger Spring

Features:

Size 1/4" BSP
Function 5 way 2 position plunger
Body Aluminium
Pressure Range 0 to 10 BAR
Media Air

Description:

The PBS52 series are a five way two position plunger spring return valve. The button is pressed down and once released the button will spring back to its resting position. Ideal for controlling cylinders or pneumatic actuators. Simple to use, install and maintain.

5 way 2 position plunger valve

Specification PLU52-02
Port Size (BSPP) 1/4"
Exhaust Port Size 1/8”
Pressure Range 0 to 10 BAR
Max Inlet Pressure 10 BAR
Medium Temperature -5 to 60°C
Body Die Cast Aluminium
End Caps Reinforced Plastic
Lubrication Not Required
Applicable Medium Air
.

1/4" BSP 5/2 Way Plunger Spring

PLU52-02

Dimensions:

5 way 2 position plunger valve

WARNING

These products are intended for use in industrial applications only. Do not use these products where pressures and temperatures can exceed those listed under ‘Technical Data’ and in our individual ‘Series’ data sheets. Before using these products with fluids other than these specified, for non-industrial applications, life-support systems, or other applications not within published specifications, consult Process Systems Pty Ltd. Through misuse, age, or malfunction, components used in industrial valve applications can fail in various modes. The system designer is warned to consider the failure modes of all component parts used in industrial valve applications and to provide adequate safeguards to prevent personal injury or damage to equipment in the event of such failure. System designers must provide a warning to the user in the system instructional manual if protection against a failure mode cannot be adequately provided. System designers and end users are cautioned to review specific warnings or specifications found in instruction sheets or labels packed or attached and shipped with the products. Our policy is one of continuous research and development. We therefore reserve the right to amend without notice the specifications given in this document or our individual ‘Series’ data sheets.

WARRANTY INFORMATION

All valve series and other products manufactured or distributed by Process Systems Pty. Ltd. are warranted by Process Systems to be free of defects in material and workmanship for a period of 1 year from the date of purchase or as the manufacturer warrants. Process Systems obligation under this warranty is limited to repair or replacement of the defec1ive product or refund of the purchase price paid solely at the discretion of Process Systems and provided such defective product is returned to Process Systems freight prepaid and upon examination by Process Systems such product is found defective. This warranty shall be void in the event that the product has been subject to misuse, misapplication, improper maintenance, modification or tampering. This warranty is expressed in lieu of all other warranties, expressed or implied from Process Systems Pty. Ltd. representatives or employees. Process Systems reserves the right to change Valve and Brochure specifications without notice.

.
