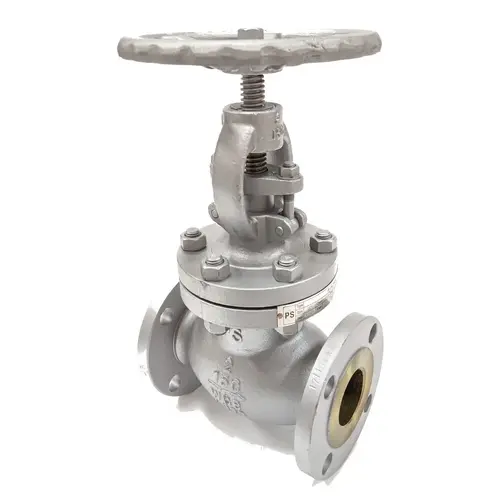

50mm Globe Valve WCB ANSI 150 Metal Seat

SKU: GLOW-50

$308.00
Inc GST In Stock
Free Shipping Australia Wide*

Size


Calculate Shipping


Cast Steel ANSI 150 Flanged Globe Valve with metal seat.Designed to ANSI B16.34 with flanges to ANSI B16.5.Tested in accordance with API 598.1964 Kpa @ -29°C to 35°C. 1171 Kpa @ 260°C

DATA SHEET

Carbon Steel ANSI 150 Flanged Globe Valve with metal seat. Designed and manufactured to API602, face to face to ANSI B16.10 with flanges to ANSI B16.5. Tested in accordance with API 598. Max temperature of 260°C (@ 1171 Kpa). Stainless Steel reinforced graphite gasket and flexible graphite packing. 13CR reinforced seats and disc for greater durability and wear. Great for steam and high temperature applications. Globe Valves are also regularly used over gate valves or other manual control valves where the user wants to achieve a greater degree of flow control. As the sahft comes down it has a 'globe shape' on the bottom of it which slowly cuts down the flow before shutting off on the seat. All globe valves come with cast heat numbers to give quality assurance for testing and mil certificates.

Model DN (mm) Pressure Range Media Temp @1171 Kpa Weight (kg)
GLOW-50 50 0 to 20 BAR 0 to 260°C 16
GLOW-65 65 0 to 20 BAR 0 to 260°C 21
GLOW-80 80 0 to 20 BAR 0 to 260°C 14
GLOW-100 100 0 to 20 BAR 0 to 260°C 22
GLOW-150 150 0 to 20 BAR 0 to 260°C 33
GLOW-200 200 0 to 20 BAR 0 to 260°C 51
GLOW-250 250 0 to 20 BAR 0 to 260°C 101
GLOW-300 300 0 to 20 BAR 0 to 260°C 148

(GLOW)

Cast Steel Flanged Globe Valve

DN L D D1 D2 b N-Ø
50 203 150 120.7 92.1 14.3 4-19
65 216 180 139.7 104.8 15.9 4-19
80 241 190 152.4 127 22.3 4-19
100 292 230 190.5 157.2 22.3 8-19
125 356 255 215.9 185.7 22.3 8-22
150 406 280 241.5 215.9 23.9 8-22
200 495 345 298.5 269.9 27 8-22
250 622 405 362 323.8 28.6 12-25
300 698 485 431.8 381 30.2 12-25

Cast Steel Flanged Globe Valve

Number Item Material
1 Body WCB
2 Seat A105+13Cr
3 Disc A105+13Cr
4 Disc Cover WCB
5 Gasket 304+Flexible Graphite
6 Bonnet WCB
7 Back Seat 2Cr13
8 Packing Flexible Graphite
9 Gland A182 F6
10 Gland Flange WCB
11 Stem Nut Cu
12 Handwheel KTH350-10
13 Lock Nut 1045
14 Bonnet Nut A193-2H
15 Bonnet Bolt A194-B7
16 Stem 2Cr13

Size 50mm to 300mm
Body WCB
Seat 13Cr reinforced steel
Nominal Pressure 150LB
Max Temp 425°C
