Features:
Size 50mm to 150mm
Body Carbon Steel (WCB)
Seat 13Cr reinforced steel
Pressure 50 Bar @ ambient
Operation Handwheel rising stem
Carbon Steel ANSI 300 Flanged Globe Valve with metal seat. Designed and manufactured to BS 1873, Face to Face to ASME B16.10 with flanges to ASME B16.5, Tested by EN 12266-1. Stainless Steel reinforced graphite gasket and flexible graphite packing. 13CR reinforced seats and disc for greater durability and wear. Great for steam and high temperature applications. Globe Valves are also regularly used over gate valves or other manual control valves where the user wants to achieve a greater degree of flow control. As the shaft comes down it has a 'globe shape' on the bottom of it which slowly cuts down the flow before shutting off on the seat. All globe valves come with cast heat numbers to give quality assurance for testing and mil certificates.

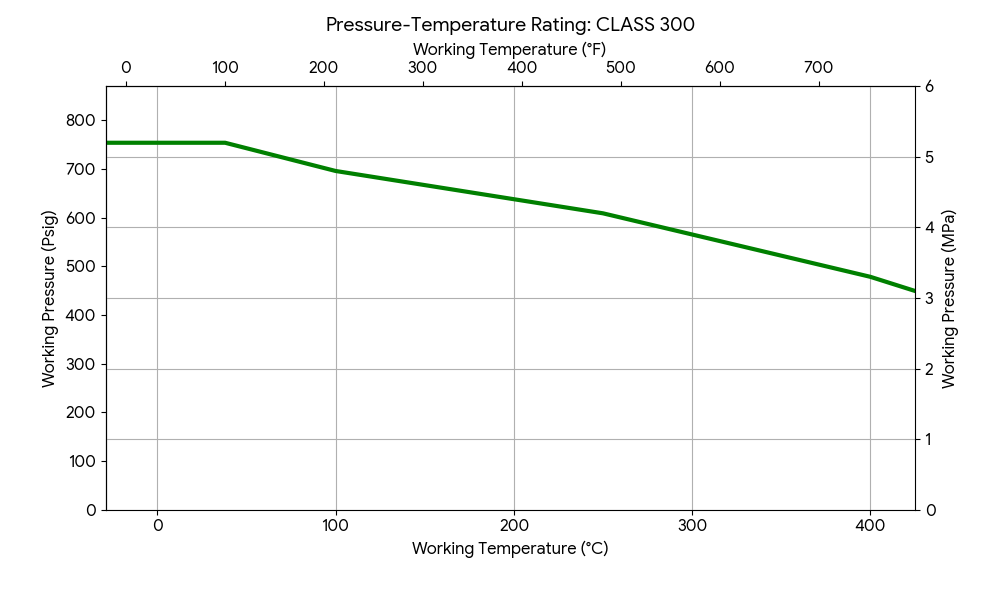

Model | DN (mm) | Pressure Range @ amnient | Temperature Range |
---|---|---|---|
GLOW3-50 | 50 | 0 to 50 BAR | -29°C to 450°C |
GLOW3-65 | 65 | 0 to 50 BAR | -29°C to 450°C |
GLOW3-80 | 80 | 0 to 50 BAR | -29°C to 450°C |
GLOW3-100 | 100 | 0 to 50 BAR | -29°C to 450°C |
GLOW3-125 | 125 | 0 to 50 BAR | -29°C to 450°C |
GLOW3-150 | 150 | 0 to 50 BAR | -29°C to 450°C |
GLOW3-200 | 200 | 0 to 50 BAR | -29°C to 450°C |
GLOW3-250 | 250 | 0 to 50 BAR | -29°C to 450°C |
GLOW3-300 | 300 | 0 to 50 BAR | -29°C to 450°C |

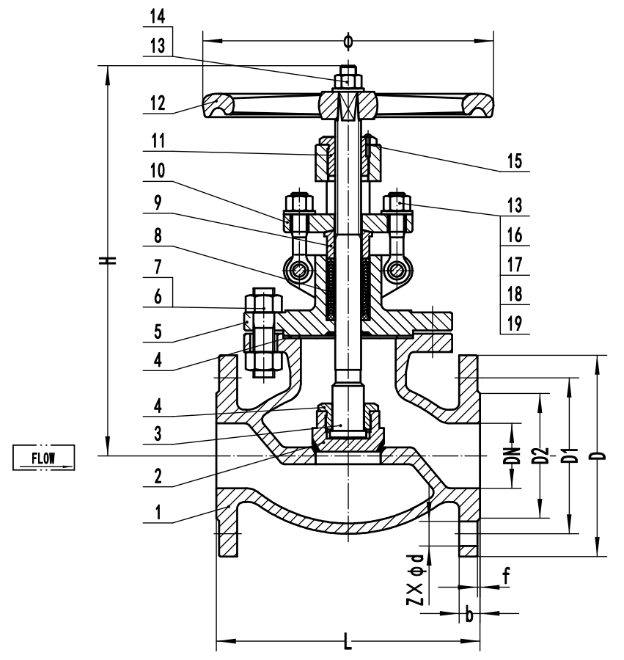

Item Size | D | D1 | D2 | DN | B-f | NX ød | H | L | Handwheel ø | Weight (kg) |
---|---|---|---|---|---|---|---|---|---|---|
2" | 165 | 127 | 92 | 51 | 23-1.6 | 8 x ø19 | 328/362 | 267 | 240 | 23.5 |
2.5" | 190 | 149.2 | 105 | 64 | 25.5-1.6 | 8 x ø22 | 387/432 | 292 | 280 | 34.5 |
3" | ø210 | ø168.3 | ø127 | 76 | 30.2-1.6 | 8 x ø22 | 416/457 | 318 | ø280 | 47.5 |
4" | 255 | 200 | ø157 | ø102 | 32-1.6 | 8 x ø23 | 452/504 | 356 | ø320 | 66 |
5" | 280 | 235 | ø186 | ø125 | 35-1.6 | 8 x ø23 | 509/580 | 400 | 360 | 96.5 |
6" | 320 | 269.9 | ø216 | ø150 | 36.6-1.6 | 12 x ø22.5 | 580/671 | 444 | 400 | 132 |
8" | 380 | 330.2 | 269.9 | 203 | 43.7-2 | 12 x ø25.4 | 559 | 241 | ||
10" | 445 | ø387.4 | ø323.8 | 254 | 48.1-2 | 16 x ø28.6 | 622 | 380 | ||
12" | 520 | 450.8 | 381 | 305 | 51.3-2 | 16 x ø31.8 | 711 | 670 |
All dimensions in mm unless shown otherwise.
No. | Name | Material |
---|---|---|
1 | BODY | ASTM A216 WCB+130R |
2 | DISC | ASTM A276 410+130R |
3 | STEN | ASTM A276 420 |
4 | HORNS NUT | ASTM A29M 1020 |
5 | BONNET GASKET | ASTM A276 420 Graphite |
6 | BONNET | ASTM A216 WCB |
7 | BOLT | ASTM A193 B7 |
8 | NUT | ASTM A194 H2 |
9 | PACKING | 304+Graphite |
10 | PACKING SLEEVE | ASTM A276 410 |
11 | PACKING BLAND | ASTM A216 WGB |
12 | STEN HUT | C35300/ASTM A439 D-2 |
13 | HANDWHEEL | ASTM A536 F33100 |
14 | FLAT WASHER | ASTM A29 1045 |
15 | KUT | ASTM A194 H2 |
16 | BOLT | ASTM A29 1035 |
17 | EYLET BOLT | ASTM A29M 1035 |
18 | NUT | ASTM A194 H2 |
19 | PIN (TYPE B) | ASTM A29M 1035 |
20 | FLAT WASHER | ASTM A29M 1045 |
21 | POSITION LIMIT PLATE | ASTM A29M 1035 |
