5 Way 3 position Lever Lever Sprung Closed Centres

5 Way 3 position Lever Lever Sprung Closed Centres

SKU: LEL53

$71.50
Inc GST In Stock
Make an Enquiry
Free Shipping Australia Wide
Size
Select Options

DATA SHEET

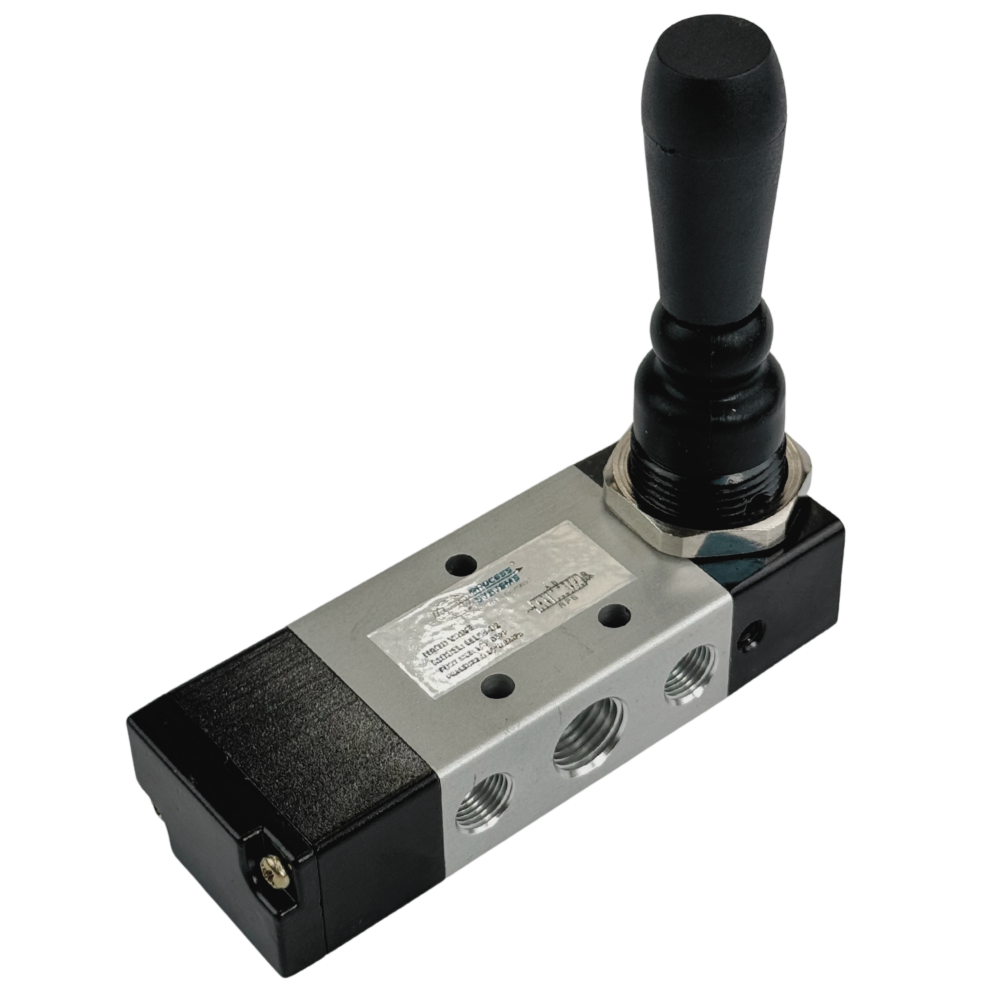

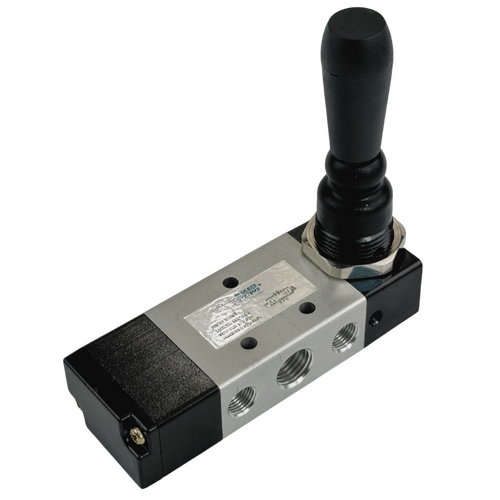

The LEL53 series are a five way three position joystick control valve. The sprung center position has closed ports so no air can be put in or exhausted from the valve (will hold your cylinder in its last position). Ideal for controlling cylinders (allows you to 'creep' your cylinder forward or back and then hold it in one spot) or pneumatic actuators simply push the lever one way or the other. Simple to use, install and maintain.

Specification LEL53-01 LEL53-02 LEL53-03 LEL53-04
Port Size (BSPP) 1/8” 1/4" 3/8" 1/2"
Exhaust Port Size 1/8” 1/8” 1/4" 1/2"
Function 5/3 Lever Lever Closed Centres
Pressure Range 0 to 10 BAR (147 psi)
Max Inlet Pressure 10 BAR (147 psi)
Medium Temperature -5 to 60°C
Body Die Cast Aluminium
End Caps Reinforced Plastic
Joystick Thermoplastic
Lubrication Not Required
Applicable Medium Air

(LEL53)

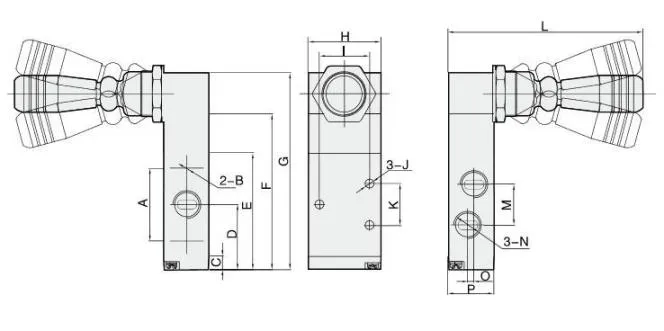

5 way 3 position lever valve

Model N A B C D E F G H I J K L M O P
LEL53-01 G1/8 28 G1/8 6.5 28 49.5 64.5 84.5 27 19 ø3.3 14 94.5 16 3 18
LEL53-02 G1/4 36 G1/8 6.5 31.5 56 75.5 97 35 24 ø4.3 20 95.5 20 3 22
LEL53-03 G3/8 44 G1/4 7.5 40 72.5 91.5 113.5 40 28 ø4.3 24 100 24 4 27
LEL53-04 G1/2 63 G1/2 7.5 54.5 101.5 124 152 50 36 ø5.5 28.5 108 35 4 34

Please note N is pressure or supply port and B is the exhaust ports. All dimensions in mm unless otherwise noted.



Size 1/4" to 1/2" BSP
Function 5 way 3 position lever
Body Aluminium
Pressure Range 0 to 10 BAR
Media Air
