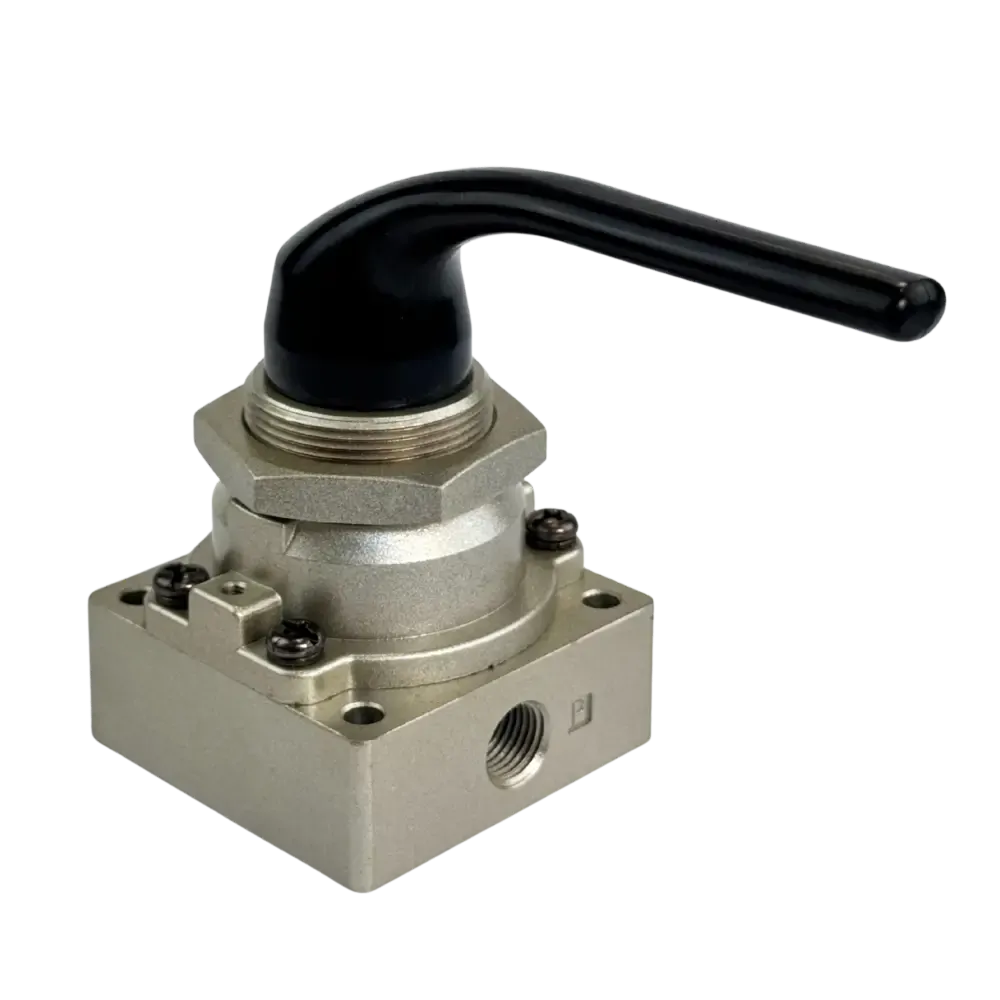

4 Way 3 position Rotary Lever Valve

SKU: ROT43

$46.75
Inc GST In Stock
Free Shipping Australia Wide*

Size


Calculate Shipping


DATA SHEET

The ROT43 series of 4 way 3 position lever valves allows you to effectively actuate cylinders including holding it in one position. It has centre closed ports which gives the capability of holding an air ram or actuator where it is and 'inching it' one way or the other. Has a common exhaust port. Simple lever operation.

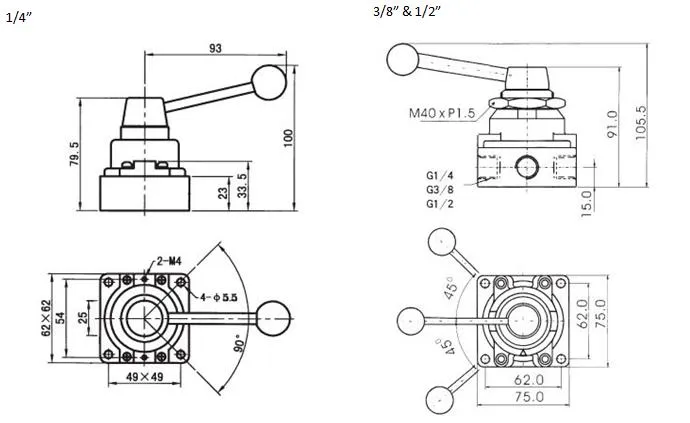

4 way 3 position rotary lever valve

Specification ROT43-02 ROT43-03 ROT43-04
Port Size (BSPP) 1/4” 3/8” 1/2”
Nominal Diameter 8mm 10mm 15mm
Pressure Range 0 to 10 BAR
Max Inlet Pressure 10 BAR (147 psi)
Medium Temperature -5 to 60°C
Construction Die Cast Aluminium with Ceramic Seat
Lubrication Not Required
Applicable Medium Air

(ROT43)

Size 1/4" to 1/2" BSP
Function 5 way 3 position rotary lever
Body Aluminium
Pressure Range 0 to 10 BAR
Media Air
