G1/8" NC 3Way 0-10 Bar 12v DC NBR MAN O/R

SKU: Z17-1-1-7NM

$60.50
Inc GST In Stock
Free Shipping Australia Wide*

Voltage


Calculate Shipping

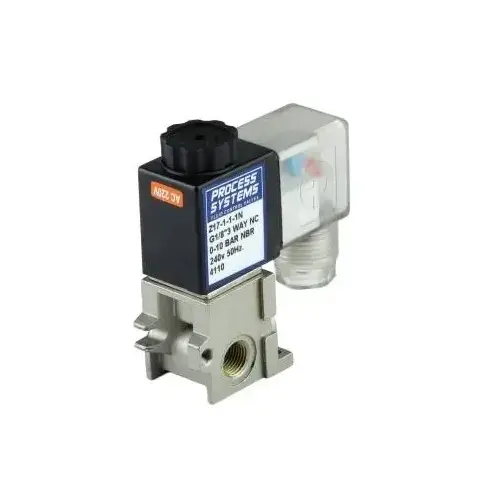

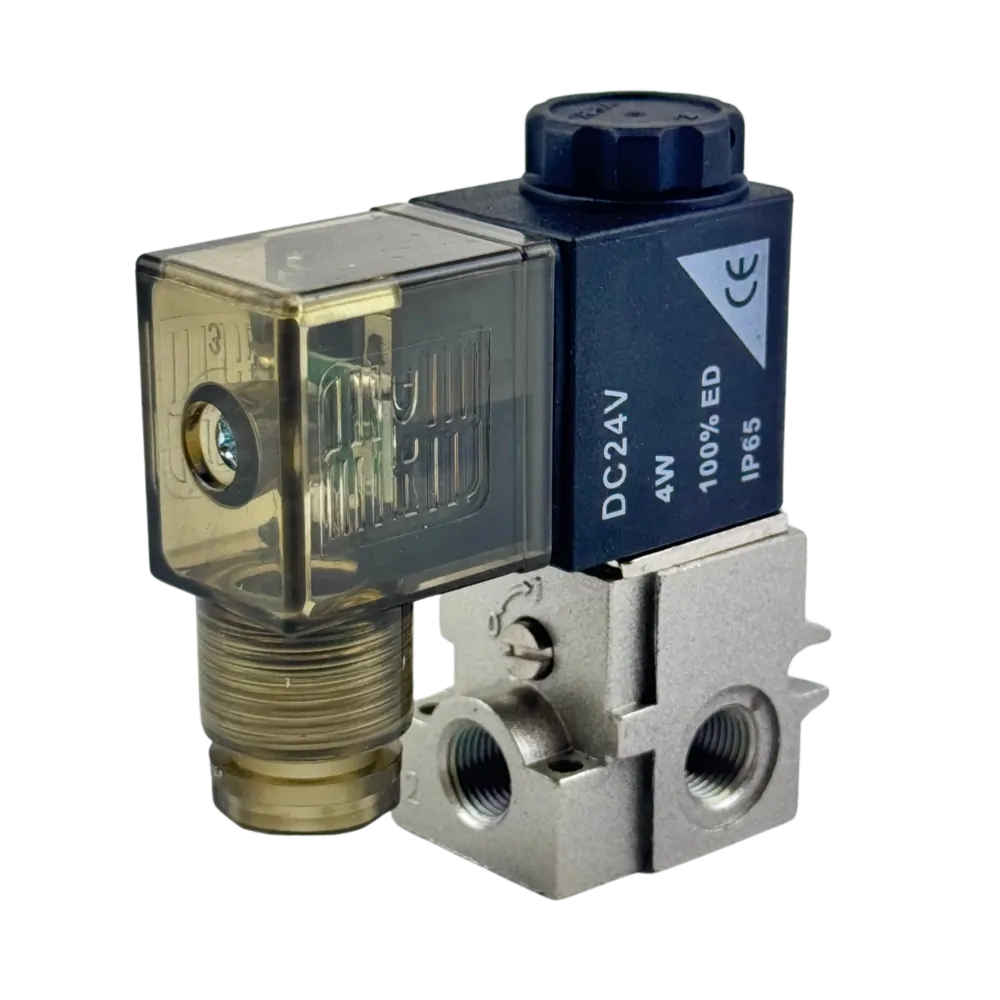

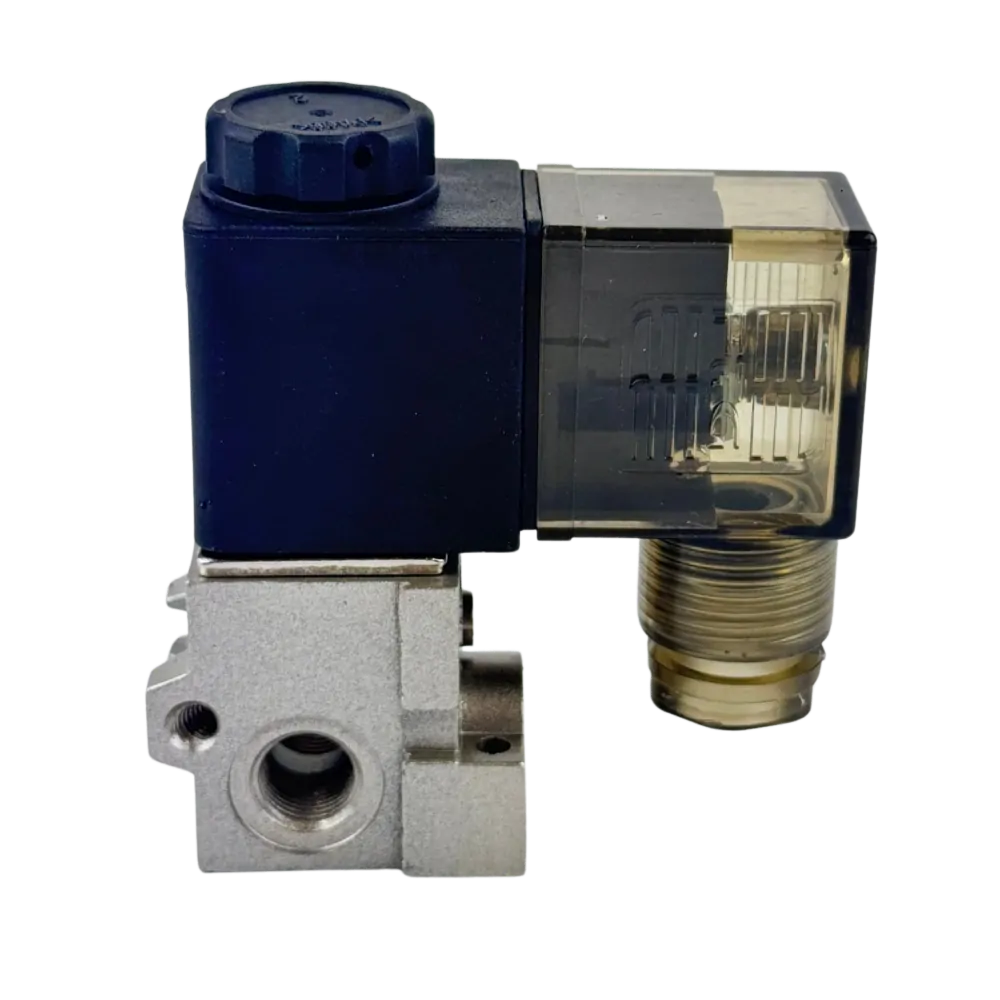

Zinc 3 way 2 position normally closed direct acting solenoid valve.G1/8", 1mm orifice, 304 SS operator, copper shading ring, NBR seat, man o/ride.0-10 BAR pressure range, vacuum 27"Hg, media temp -10°C to 80°C.

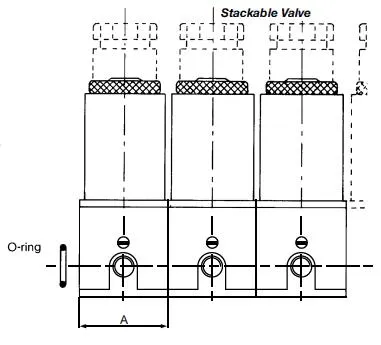

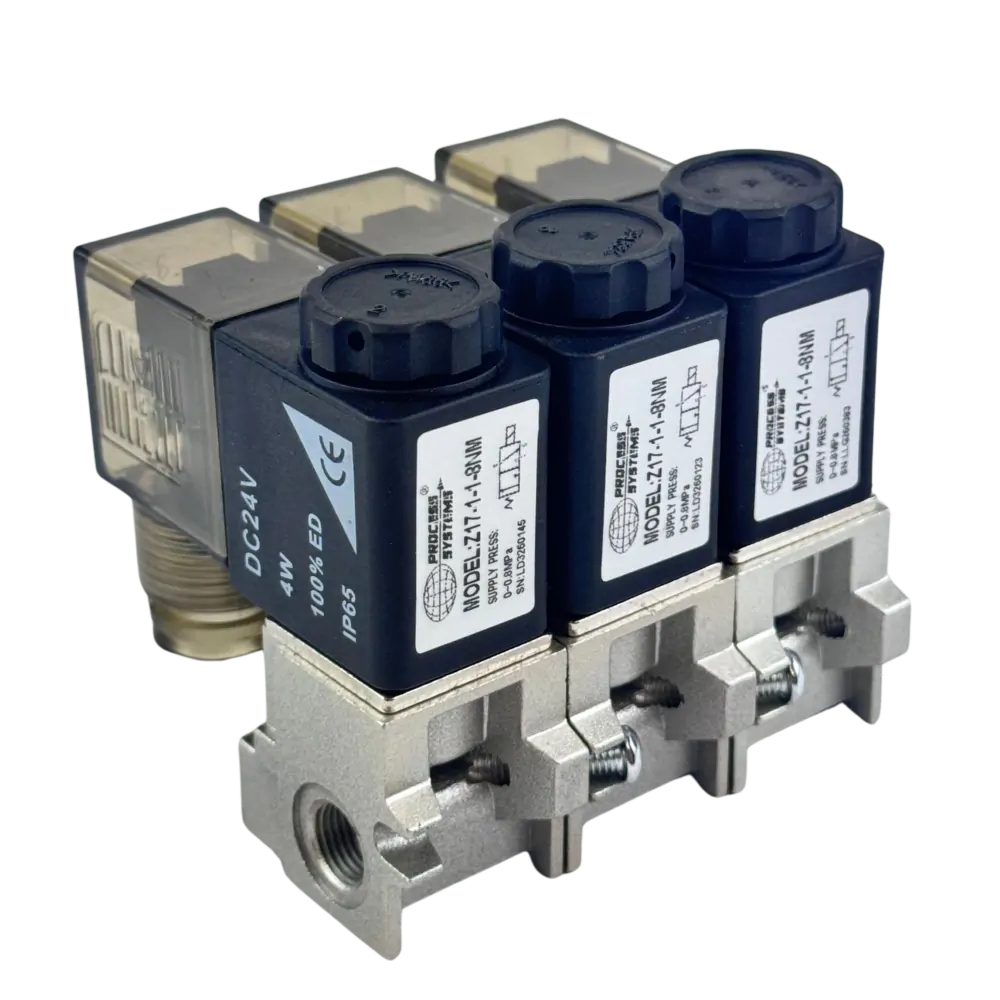

Three way direct acting die cast zinc solenoid valve. This valve features a stackable body with a manual override and LED connector plug as standard. Typical applications include signal or command control of larger valves or direct operation of small air cylinders. Available in 1/8” BSP ports only and in all voltages.

Model Port Size Orifice ømm CV Media Pressure Media Temperature Weight Kg Coil Specifications
Z17-1-1-*VM 1/8” BSP 1 0.08 0 to 10 BAR -5°Ct o 80°C 0.5 SC-A1
6 Volt Amps
5 Watts
Class F Insulation
100% ED

(Z17)

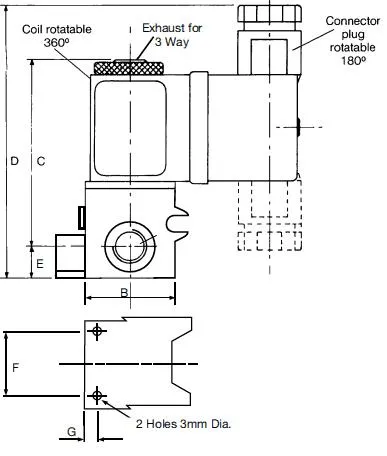

3 way normally closed zinc solenoid valve

A B C D E F G
25 30 59 80 9 18 3

All Dimensions in mm.

Size 1/8" BSP only
Function 3 way normally Closed (power to open)
Valve Operation Direct Acting
Body Die Cast Zinc
Seat FKM
Pressure Range 0 to 10 BAR
Media Air
