Stainless Steel Male Hose Adaptor Quick Coupler

SKU: S-PH

$6.60
Inc GST In Stock
Free Shipping Australia Wide

Inside Diameter Hose Size


DATA SHEET

304 Stainless Steel threaded male hose barb adaptor with NBR seals. Nitto compatable. Ideal for use in air lines or other applications where fluid is present and corosion resistance is required.

(S-PH)

Stainless Steel Push on Hose Barb Quick Coupler Nitton Compatible

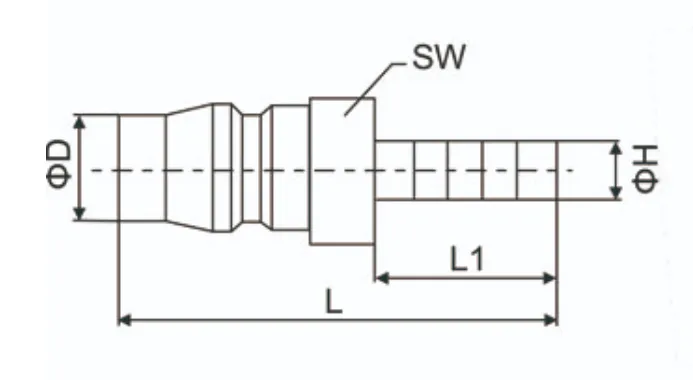

Model L ØD L1 SW ØH
S-20PH 54 11 27 15 9
S-30PH 56 11 29 15 11
S-40PH 60 11 32 15 13

All dimensions in mm unless shown otherwise.

Size 1/4" to 1/2" BSP
Function Female Quick Connector
Body 304 Stainless Steel
Pressure 15 Bar
Temperature -10°C to 80°C
