Features:
Size 8mm to 12mm Hose
Function Hose Quick Connector
Body 304 Stainless Steel
Pressure 15 Bar
Temperature -10°C to 80°C
304 Stainless Steel hose barb quick coupler adaptor with NBR seals. Nitto compatable. Ideal for use in air lines or other applications where fluid is present and corosion resistance is required.
(S-SH)

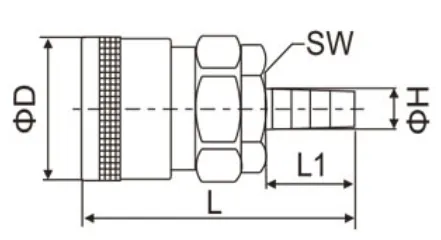

Model | L | ØD | L1 | SW | ØH |
---|---|---|---|---|---|
S-20SH | 68 | 26.5 | 27 | 19 | 9 |
S-30SH | 70 | 26.5 | 29 | 19 | 11 |
S-40SH | 74 | 26.5 | 32 | 19 | 13 |
All dimensions in mm unless shown otherwise.
Size 8mm to 12mm Hose
Function Hose Quick Connector
Body 304 Stainless Steel
Pressure 15 Bar
Temperature -10°C to 80°C
