Features:
Size 1/4" to 1/2" BSP
Function Female Quick Coupler
Body Plated Steel
Pressure 8 Bar
Temperature 0°C to 50°C
Female Quick Connector also known as female quick coupler, snap connector, quick relase fitting. Female BSP to female quick connect. Available in 1/4", 3/8" & 1/2" BSP.
(SFC)

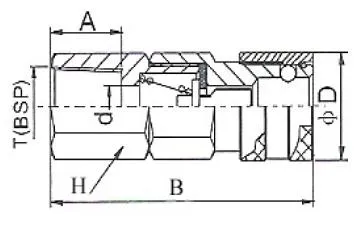

Item | B | A | T(BSP) | d | H | øD |
---|---|---|---|---|---|---|
SFC-02 | 42 | 12 | 1/4 | 10.3 | 21 | 20 |
SFC-03 | 45.3 | 13 | 3/8 | 10.9 | 21 | 23 |
SFC-04 | 49 | 15 | ½ | 10.8 | 21 | 23 |
All dimensions in mm unless shown otherwise.
Size 1/4" to 1/2" BSP
Function Female Quick Coupler
Body Plated Steel
Pressure 8 Bar
Temperature 0°C to 50°C
