SKU: BLBE

Electric Nickel Plated Brass Ball Valve

From $594.00

Inc GST
In Stock
Make an Enquiry

2 way 2 piece full bore nickel plated brass ball valve with BSP threaded connections and an electric actuator (drive open, drive close). Self adjusting stem packing assembly with Belleville spring for temperature fluctuations and vibration. Pre drilled metric hole on ISO5211 direct mounting pad to minimise any thermal transfer from valve to actuator. PTFE seats for temperatures up to 100°C. IP67 electric actuator with visual indicator and two extra limit switches. Typical applications include water treatment, petrochemical and general industry. Threads conform to ISO 7.1 Sealing Threads.

Model Size(BSP) Orifice Size (mm) Actuator Media Pressure Media Temperature
BLB4B-E*-T 1/2 15 0M-1 Vacuum to 10 Bar -10°C to 100°C
BLB5B-E*-T 3/4 20 0M-1 Vacuum to 10 Bar -10°C to 100°C
BLB6B-E*-T 1 25 0M-1 Vacuum to 10 Bar -10°C to 100°C
BLB7B-E*-T 1 ¼ 32 0M-1 Vacuum to 10 Bar -10°C to 100°C
BLB8B-E*-T 1 ½ 40 0M-1 Vacuum to 10 Bar -10°C to 100°C

*Voltages available; 12vDC, 24vDC, 24vAC, 110vAC, 240vAC, 415vAC.

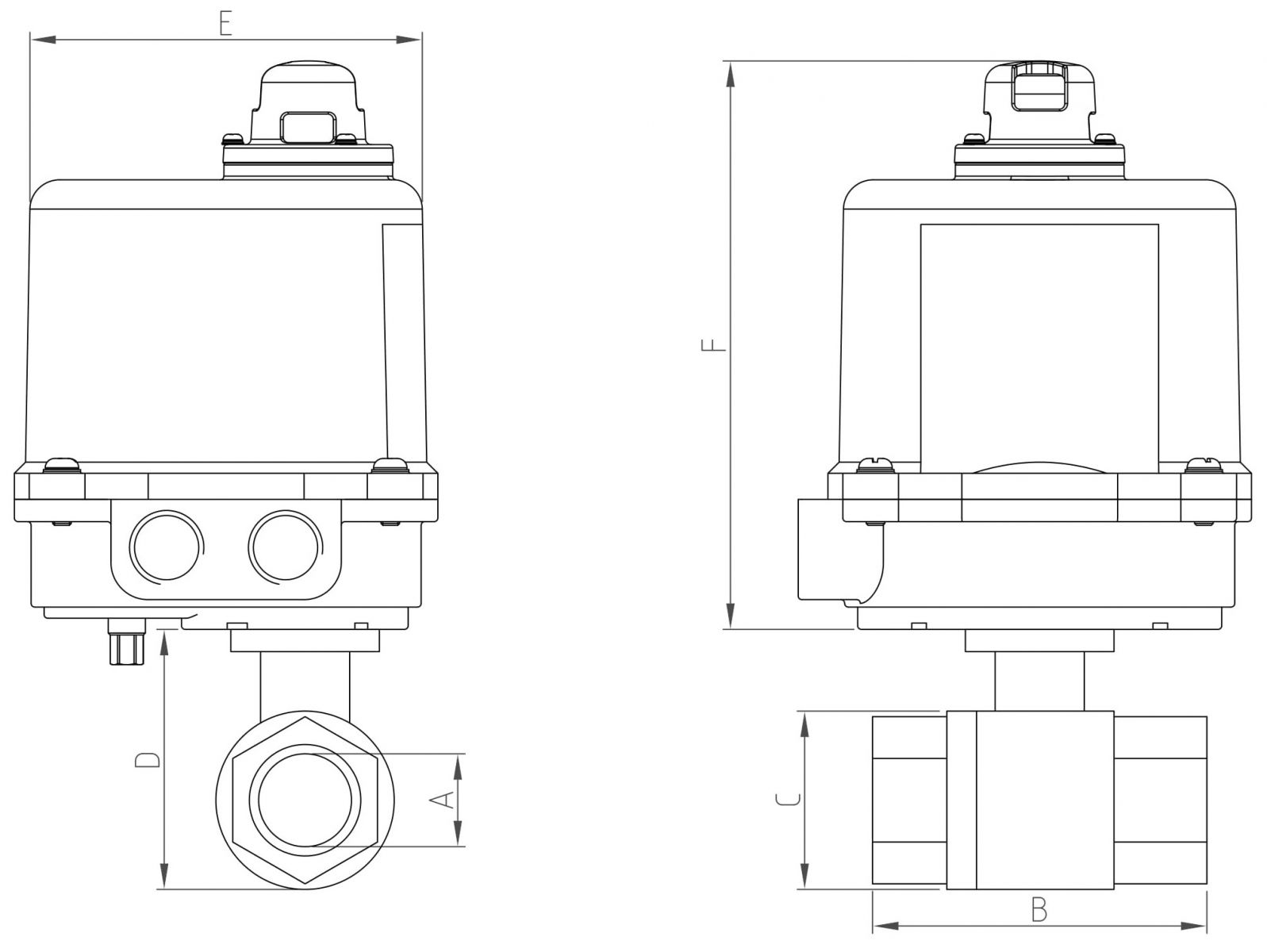

Model Actuator A B C D E F
BLB4B-E*-T 0M-1 15 67 34 57 106 153
BLB5B-E*-T 0M-1 20 76 40 59 106 153
BLB6B-E*-T 0M-1 25 90 48 70 106 153
BLB7B-E*-T 0M-1 32 102 60 63 106 153
BLB8B-E*-T 0M-1 40 114 72 72 106 153

All dimensions in mm unless otherwise shown

Size 1/2" to 1 1/2" BSP
Body Nickel Plated Brass
Seat PTFE
Pressure 16 BAR
Temperature -10°C to 100°C
Actuation Electric

Others Also Bought

BLBE

Electric Nickel Plated Brass Ball Valve

Features:

Size 1/2" to 1 1/2" BSP
Body Nickel Plated Brass
Seat PTFE
Pressure 16 BAR
Temperature -10°C to 100°C
Actuation Electric

Description:

2 way 2 piece full bore nickel plated brass ball valve with BSP threaded connections and an electric actuator (drive open, drive close). Self adjusting stem packing assembly with Belleville spring for temperature fluctuations and vibration. Pre drilled metric hole on ISO5211 direct mounting pad to minimise any thermal transfer from valve to actuator. PTFE seats for temperatures up to 100°C. IP67 electric actuator with visual indicator and two extra limit switches. Typical applications include water treatment, petrochemical and general industry. Threads conform to ISO 7.1 Sealing Threads.

Model Size(BSP) Orifice Size (mm) Actuator Media Pressure Media Temperature
BLB4B-E*-T 1/2 15 0M-1 Vacuum to 10 Bar -10°C to 100°C
BLB5B-E*-T 3/4 20 0M-1 Vacuum to 10 Bar -10°C to 100°C
BLB6B-E*-T 1 25 0M-1 Vacuum to 10 Bar -10°C to 100°C
BLB7B-E*-T 1 ¼ 32 0M-1 Vacuum to 10 Bar -10°C to 100°C
BLB8B-E*-T 1 ½ 40 0M-1 Vacuum to 10 Bar -10°C to 100°C

*Voltages available; 12vDC, 24vDC, 24vAC, 110vAC, 240vAC, 415vAC.

.

Electric Nickel Plated Brass Ball Valve

BLBE

Dimensions:

Model Actuator A B C D E F
BLB4B-E*-T 0M-1 15 67 34 57 106 153
BLB5B-E*-T 0M-1 20 76 40 59 106 153
BLB6B-E*-T 0M-1 25 90 48 70 106 153
BLB7B-E*-T 0M-1 32 102 60 63 106 153
BLB8B-E*-T 0M-1 40 114 72 72 106 153

All dimensions in mm unless otherwise shown

WARNING

These products are intended for use in industrial applications only. Do not use these products where pressures and temperatures can exceed those listed under ‘Technical Data’ and in our individual ‘Series’ data sheets. Before using these products with fluids other than these specified, for non-industrial applications, life-support systems, or other applications not within published specifications, consult Process Systems Pty Ltd. Through misuse, age, or malfunction, components used in industrial valve applications can fail in various modes. The system designer is warned to consider the failure modes of all component parts used in industrial valve applications and to provide adequate safeguards to prevent personal injury or damage to equipment in the event of such failure. System designers must provide a warning to the user in the system instructional manual if protection against a failure mode cannot be adequately provided. System designers and end users are cautioned to review specific warnings or specifications found in instruction sheets or labels packed or attached and shipped with the products. Our policy is one of continuous research and development. We therefore reserve the right to amend without notice the specifications given in this document or our individual ‘Series’ data sheets.

WARRANTY INFORMATION

All valve series and other products manufactured or distributed by Process Systems Pty. Ltd. are warranted by Process Systems to be free of defects in material and workmanship for a period of 1 year from the date of purchase or as the manufacturer warrants. Process Systems obligation under this warranty is limited to repair or replacement of the defec1ive product or refund of the purchase price paid solely at the discretion of Process Systems and provided such defective product is returned to Process Systems freight prepaid and upon examination by Process Systems such product is found defective. This warranty shall be void in the event that the product has been subject to misuse, misapplication, improper maintenance, modification or tampering. This warranty is expressed in lieu of all other warranties, expressed or implied from Process Systems Pty. Ltd. representatives or employees. Process Systems reserves the right to change Valve and Brochure specifications without notice.

.
