50mm 10Bar DA Cast Iron/316SS NBR

SKU: KGDDAN-50

$429.00
Inc GST In Stock
Free Shipping Australia Wide*

Size


Calculate Shipping


Cast Iron body Knife Gate Valve, double acting pneumatic50mm NB, 316SS gate, NBR resilient seat, Bi-directional flow.10 BAR pressure range, media temp -10°C to 80°C.PTFE Packing, Table E AS 2129-2000. 1/4" Inlet Ports on actuator

DATA SHEET

Cast iron wafer knife gate valve with resilient seat (NBR) and 316 stainless steel gate. Operated by a double acting pneumatic actuator and suitable for up to 10 BAR media pressure. Great for effluent, sewerage treatment plants and other applicable meadia (not recomended for abrasive media which will sit in seats). Suits table E flanges. Unique design allows for a long life and low maintenance once installed. Accepts bi-directional flow. Other flanges available upon request. Available with limit switches and striker. Designed to JB308, face to face according to DIN3202-K1 and tested to ISO5208.

Model Size (mm) Pressure Range Media Temperature Weight (kg) Cylinder Port Size
KGDDAN-50 50 0 to 10 BAR 0°C to 80°C 9 3/8"
KGDDAN-65 65 0 to 10 BAR 0°C to 80°C 12 3/8"
KGDDAN-80 80 0 to 10 BAR 0°C to 80°C 13 1/2"
KGDDAN-100 100 0 to 10 BAR 0°C to 80°C 15 1/2"
KGDDAN-125 125 0 to 10 BAR 0°C to 80°C 23 1/2"
KGDDAN-150 150 0 to 10 BAR 0°C to 80°C 27 1/2"
KGDDAN-200 200 0 to 10 BAR 0°C to 80°C 50 1/2"
KGDDAN-250 250 0 to 10 BAR 0°C to 80°C 80 3/4"
KGDDAN-300 300 0 to 10 BAR 0°C to 80°C 115 3/4"

(KGDDAN)

Double Acting Pneumatic Cast Iron Knife Gate Valve

Size (mm) L D1 n - d H Actuator Diameter
50 43 114 4 – 18 560 80
65 46 127 4 – 18 615 80
80 46 146 4 – 18 690 100
100 52 178 8 – 18 790 125
125 56 210 8 – 18 880 125
150 56 235 8 – 22 1045 160
200 60 292 8 – 22 1310 200
250 68 356 12 - 22 1425 250
300 78 406 12 - 26 1680 250

All dimensions in mm unless otherwise shown.

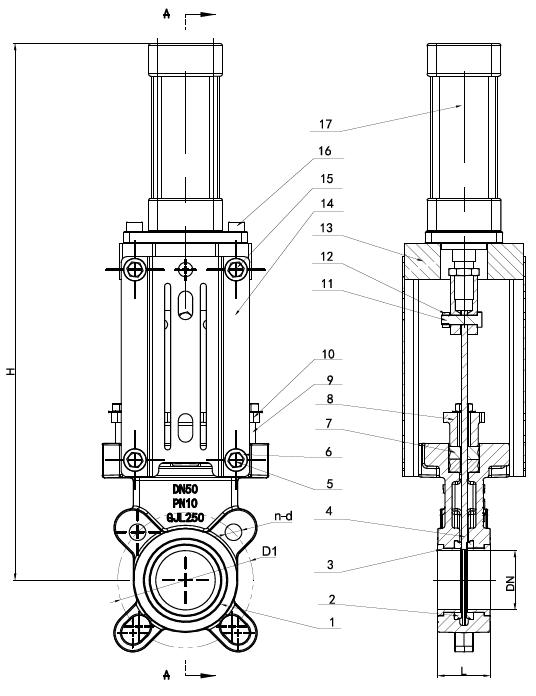

Bi directional cast iron pneumatic knife gate valve

Double Acting Pneumatic Cast Iron Knife Gate Valve

No. Item Material
1 Body Cast Iron
2 Seat NBR
3 Disc 316 S.S
4 Seat Back Cast Iron
5 Bolt Carbon Steel
6 Washer Carbon Steel
7 Stuffing PTFE
8 Gland Cast Iron
9 Stud Carbon Steel
10 Washer Carbon Steel
11 Stem 420SS
12 Stem Nut Brass
13 Top Flange Cast Iron
14 Yoke Steel
15 Bolt Carbon Steel
16 Bolt Carbon Steel
17 Actuator Aluminium

Size 50mm to 300mm
Body Cast Iron
Seat NBR
Gate 316 Stainless Steel
Pressure 10 BAR
Actuation Double Acting Pneumatic
