3 way Double Acting Nickel Plated Brass Ball Valve

From $242.00

Inc GST
In Stock
Make an Enquiry

High performance 3 way (L and T port) full bore nickel plated brass ball valve with BSP threaded connections and a double acting pneumatic actuator. Self adjusting stem packing assembly with Belleville spring for temperature fluctuations and vibration. Long neck to minimise any thermal transfer from valve to actuator. PTFE seats for temperatures up to 100°C. Typical applications include water treatment, petrochemical and general industry. Threads conform to ISO 7.1 Sealing Threads.

Model Size(BSP) Orifice Size (mm) Actuator Media Pressure Media Temperature Actuator Pressure Actuator Port Size
BLB3L4B-DA-T 1/2 15 DA52 Vacuum to 10 Bar -10°C to 100°C 6 to 8 BAR 1/8"
BLB3L5B-DA-T 3/4 20 DA52 Vacuum to 10 Bar -10°C to 100°C 6 to 8 BAR 1/8"
BLB3L6B-DA-T 1 25 DA52 Vacuum to 10 Bar -10°C to 100°C 6 to 8 BAR 1/8"
BLB3L7B-DA-T 1 ¼ 32 DA52 Vacuum to 10 Bar -10°C to 100°C 6 to 8 BAR 1/8"
BLB3L8B-DA-T 1 ½ 40 DA63 Vacuum to 10 Bar -10°C to 100°C 6 to 8 BAR 1/8"

For sizes over 2” please see 3 way Stainless Steel Valves.

L or T port

3 way double acting nickel plated brass ball valve

Model DN Actuator A D E H L P W
BLB3L4B-DA-RT 15 DA52 139 69 89 141 77 1/8” 60.5
BLB3L5B-DA-RT 20 DA52 139 69 89 154.5 87 1/8” 68
BLB3L6B-DA-RT 25 DA52 139 69 89 166 108 1/8” 82.5
BLB3L7B-DA-RT 32 DA52 139 69 89 184.5 123 1/8” 99.2
BLB3L8B-DA-RT 40 DA63 162 80 100 217 139 1/8” 113.7
BLB3L9B-DA-RT 50 DA63 162 80 100 240.5 166 1/8” 139

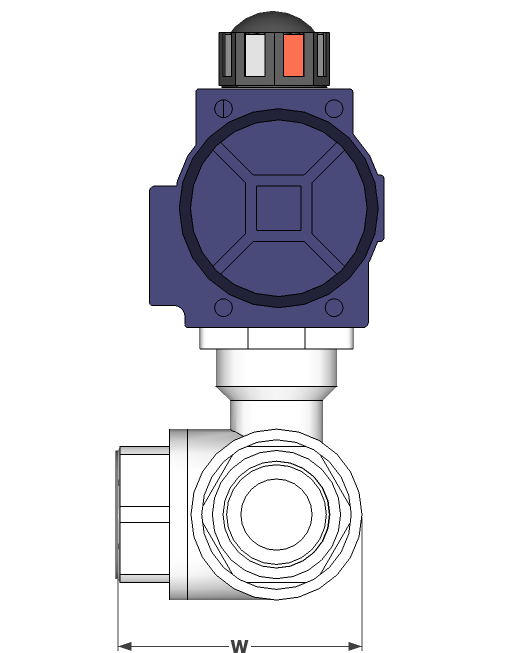

 3 way nickel plated brass ball valve dimension

3 way double acting ball valve construction



Item Article Material
1 Visual Indicator UV Stabilised Thermoplastic
2 Adjustable Stops Stainless Steel
3 Pressure Ports Threaded
4 Drive 316 Stainless Steel
5 Retainer 316 Stainless Steel
6 Chevron Seals Teflon
7 Backing O-ring Viton
8 Thrust Washer Teflon
9 Seats Teflon
10 Body Nickel Plated Brass
11 End Connection Nickel Plated Brass

Size 1/2" to 1 1/2" BSP
Body Nickel Plated Brass
Seat PTFE
Pressure 16 BAR
Temperature -10°C to 100°C
Actuation Double Acting Pneumatic

We Also Recommend

Others Also Bought

BLB3DA

3 way Double Acting Nickel Plated Brass Ball Valve

Features:

Size 1/2" to 1 1/2" BSP
Body Nickel Plated Brass
Seat PTFE
Pressure 16 BAR
Temperature -10°C to 100°C
Actuation Double Acting Pneumatic

Description:

High performance 3 way (L and T port) full bore nickel plated brass ball valve with BSP threaded connections and a double acting pneumatic actuator. Self adjusting stem packing assembly with Belleville spring for temperature fluctuations and vibration. Long neck to minimise any thermal transfer from valve to actuator. PTFE seats for temperatures up to 100°C. Typical applications include water treatment, petrochemical and general industry. Threads conform to ISO 7.1 Sealing Threads.

Model Size(BSP) Orifice Size (mm) Actuator Media Pressure Media Temperature Actuator Pressure Actuator Port Size
BLB3L4B-DA-T 1/2 15 DA52 Vacuum to 10 Bar -10°C to 100°C 6 to 8 BAR 1/8"
BLB3L5B-DA-T 3/4 20 DA52 Vacuum to 10 Bar -10°C to 100°C 6 to 8 BAR 1/8"
BLB3L6B-DA-T 1 25 DA52 Vacuum to 10 Bar -10°C to 100°C 6 to 8 BAR 1/8"
BLB3L7B-DA-T 1 ¼ 32 DA52 Vacuum to 10 Bar -10°C to 100°C 6 to 8 BAR 1/8"
BLB3L8B-DA-T 1 ½ 40 DA63 Vacuum to 10 Bar -10°C to 100°C 6 to 8 BAR 1/8"

For sizes over 2” please see 3 way Stainless Steel Valves.

L or T port

.

3 way Double Acting Nickel Plated Brass Ball Valve

BLB3DA

Dimensions:

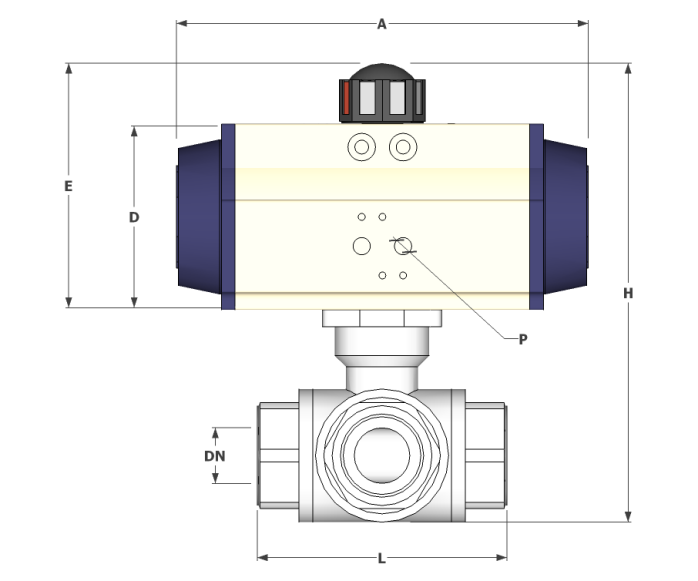

3 way double acting nickel plated brass ball valve

Model DN Actuator A D E H L P W
BLB3L4B-DA-RT 15 DA52 139 69 89 141 77 1/8” 60.5
BLB3L5B-DA-RT 20 DA52 139 69 89 154.5 87 1/8” 68
BLB3L6B-DA-RT 25 DA52 139 69 89 166 108 1/8” 82.5
BLB3L7B-DA-RT 32 DA52 139 69 89 184.5 123 1/8” 99.2
BLB3L8B-DA-RT 40 DA63 162 80 100 217 139 1/8” 113.7
BLB3L9B-DA-RT 50 DA63 162 80 100 240.5 166 1/8” 139

 3 way nickel plated brass ball valve dimension

.

3 way Double Acting Nickel Plated Brass Ball Valve

BLB3DA

Construction:

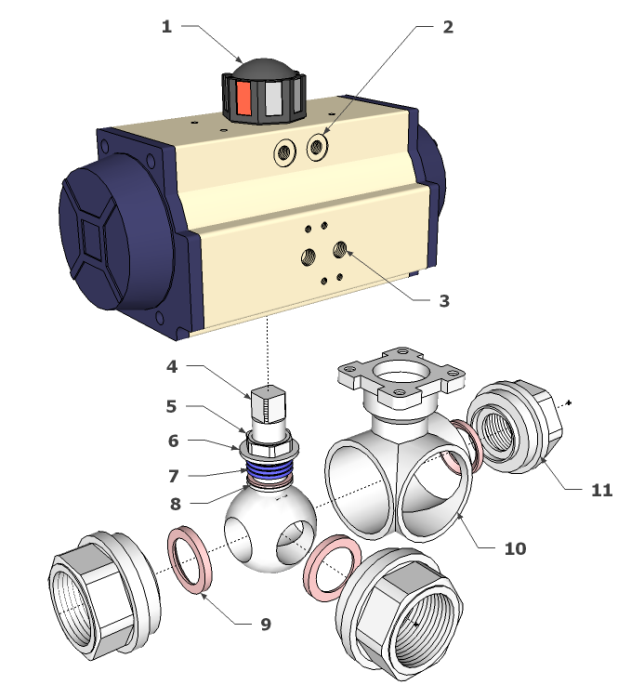

3 way double acting ball valve construction



Item Article Material
1 Visual Indicator UV Stabilised Thermoplastic
2 Adjustable Stops Stainless Steel
3 Pressure Ports Threaded
4 Drive 316 Stainless Steel
5 Retainer 316 Stainless Steel
6 Chevron Seals Teflon
7 Backing O-ring Viton
8 Thrust Washer Teflon
9 Seats Teflon
10 Body Nickel Plated Brass
11 End Connection Nickel Plated Brass
